Περιγραφή

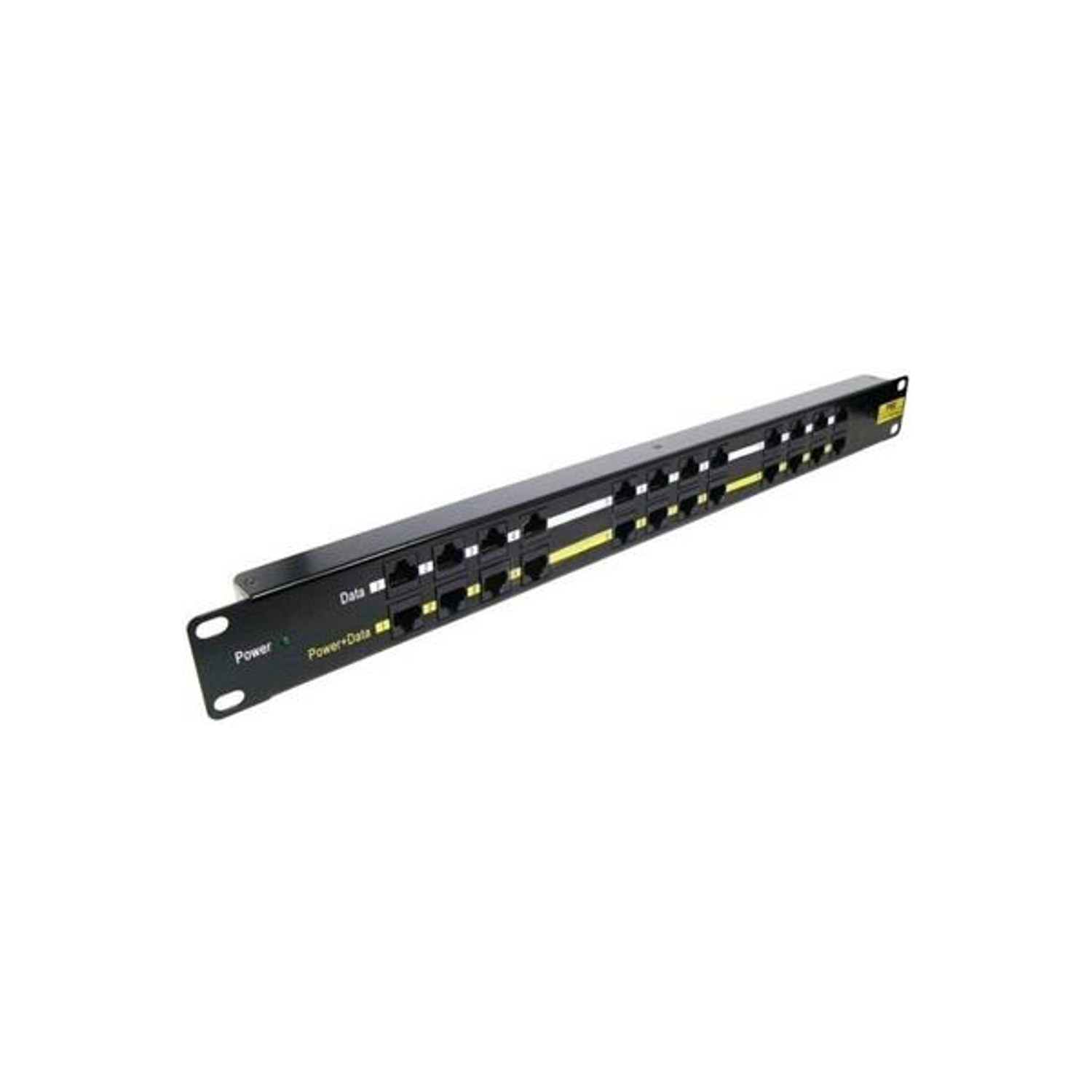

Panel integrates 16 passive PoE injector into a single 19″/1U panel suitable for powering up to sixteen devices. Professional solutions for remote power greater number of active elements supporting passive PoE. RJ45 connectors labeled as “DATA” on one side are connected Ethernet ports without power (eg. Switch) and on the opposite side “POWER + DATA” are connected devices using Power over Ethernet. POE-PAN16 is compatible with the active elements utilizing the power pins 4/5 + pins 7/8. Particularly suitable for components brands MikroTik and Ubiquiti Networks. Optimize power supply used by devices and their configuration. Features • 19″ design • 16 ports supporting passive PoE • LED indicator to determine the functional power adapter • The grounding screw on the rear panel to filter surge • Resettable fuse against wobble current (OCP protection 650 mA) on each port • Input power connector – standard jack 2.1 / 5.5mm Specifications
| Type of product: | PoE injector |
| Ethernet speed [Mbps]: | 10/100 |
| Depth [mm]: | 22 |
| Width [mm]: | 483 |
| Height [mm]: | 45 |
| Weight [kg]: | 0,7 |
| Rackmount: | Yes |
| Shielding: | Yes |
| Operating temperature [°C]: | 0 up to 40 |
| LED indication: | Yes |
| Pin powering: | 4,5 (+), 7,8 (-) |
| PoE ports: | 16 |
| The input voltage: | 9 .. 48V DC |
