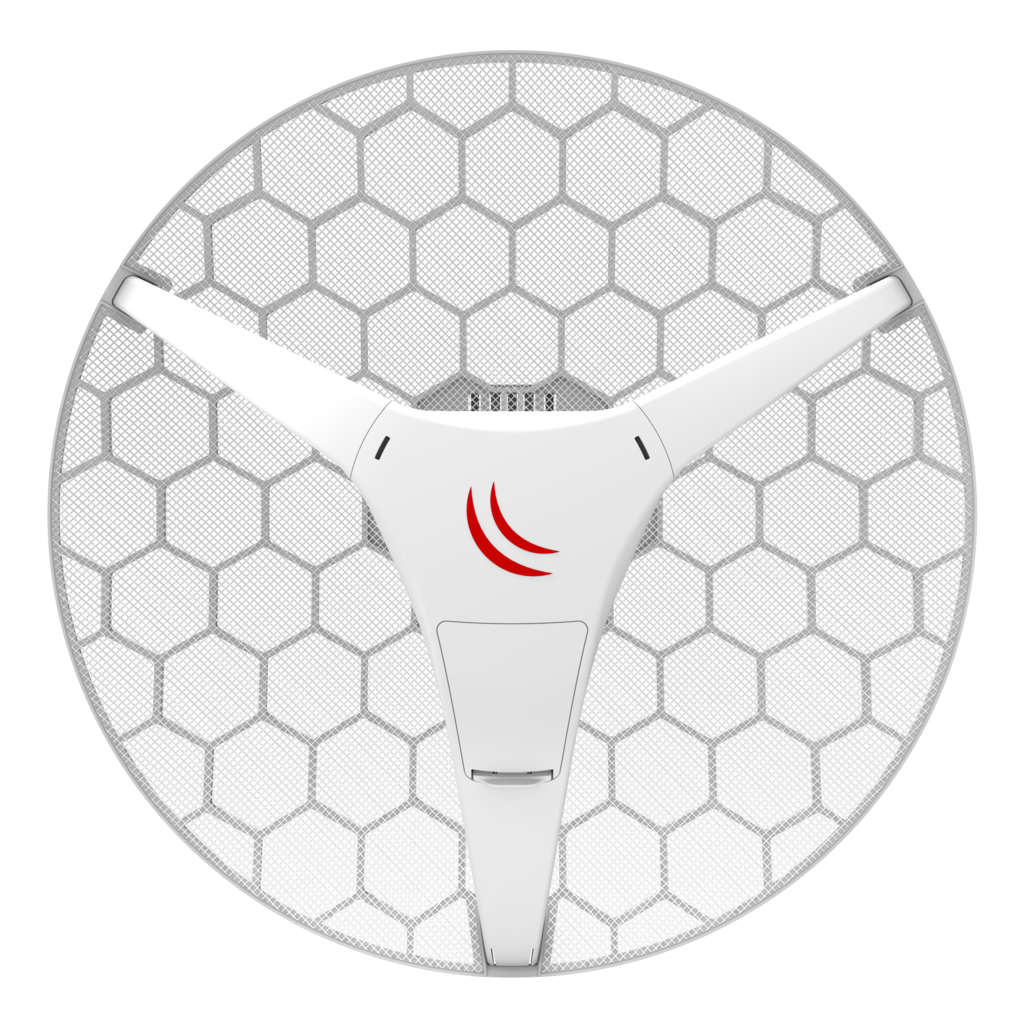

LHG HP5 (RBLHG-5HPND)
The LHG is a compact and light 5GHz 802.11 a/n wireless device with an integrated dual polarization 24.5 dBi grid antenna. LHG HP5 comes with two times more output power than our regular LHG 5, and is designed to reach up to 60% longer distances.
The grid design ensures protection against wind, and the fact that the antenna element is built into the wireless unit means no loss on cables.
We have two versions available.
LHG HP5-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
LHG HP5 (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
Technical Specifications:
| Licence level | 3 |
| CPU nominal frequency | 600 MHz |
| Size of RAM | 64 MB |
| Storage type | Flash |
| Storage size | 16 MB |
| 10/100 Ethernet ports | 1 |
| Wireless | Built-in 5 GHz 802.11a/n, dual-chain |
| Wireless chip model | AR9344 |
| Operating frequency: | |
| International | 5150 – 5875 MHz |
| USA | 5170 – 5250 MHz 5725 – 5835 MHz |
| Antenna gain | 24.5 +/- 0.5 dBi |
| Antenna beam width | 10.4° |
| PoE in | Yes |
| Supported input voltage | 10 V – 28 V (passive PoE) |
| Wind Survivability | 205 km/h |
| Wind Loading | 186N @ 205 km/h |
| Cross polar | 15 dBi |
| Port to port isolation | 20 dB |
| Front to back ratio | 25 dB |
| Operating Temperature | -40 to 70° C |
| Operating Humidity | 5 to 95% noncondensing |
| Shock and Vibration | ETSI300-019-1.4 |
| ETSI specification | EN 302 326 DN2 |
| Dimensions | diameter 391 x 222 mm; package 450 x 450 x 145 mm |
| Weight | Unit: 560 g; package: 1.98 kg |
| Max Power consumption | 7 W |
