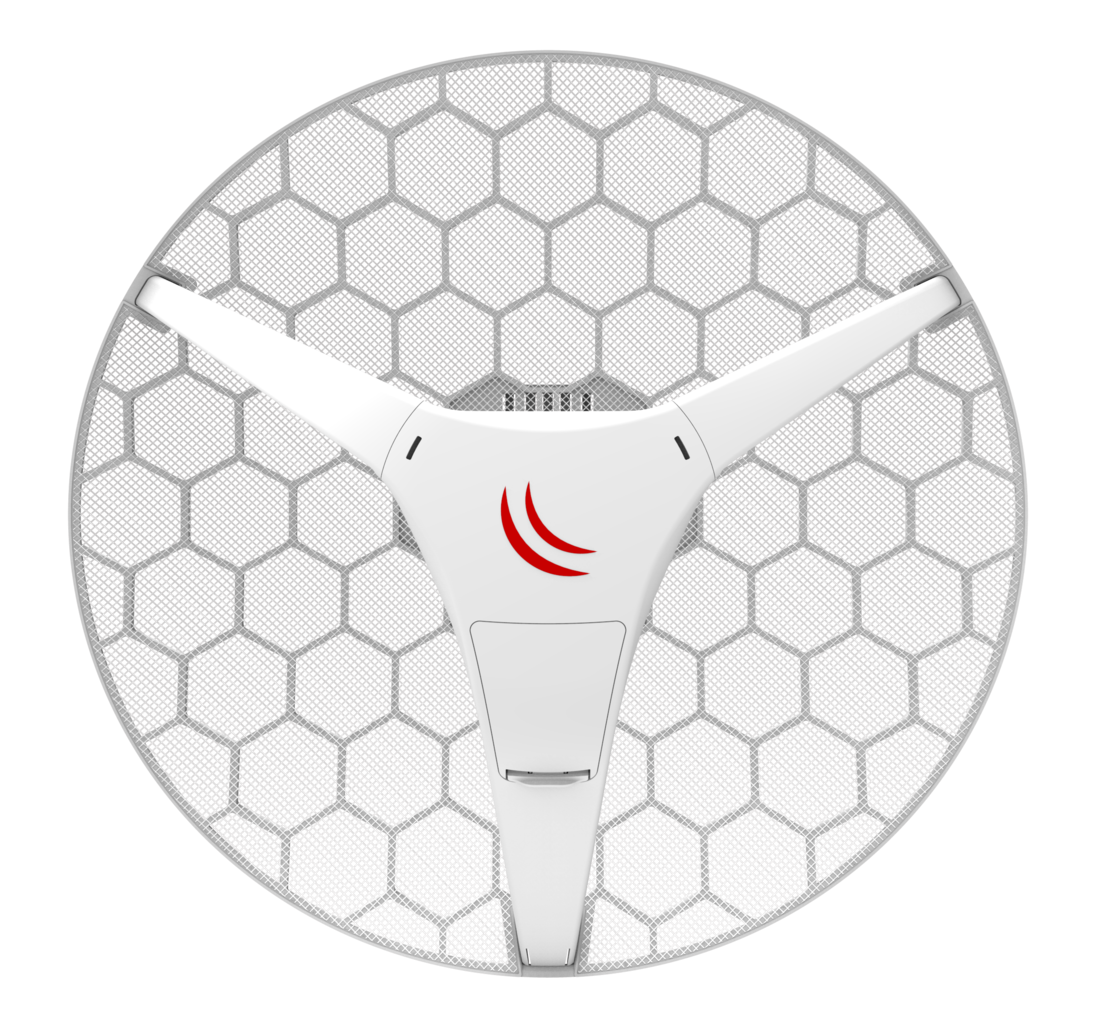

LHG 5 ac (RBLHGG-5acD)
The LHG 5 ac is a compact and light 5GHz 802.11ac wireless device with an integrated dual polarization 24.5 dBi grid antenna at a revolutionary price. It is perfect for point to point links or for use as a CPE at longer distances and supports Nv2 TDMA protocol.
The device includes one 10/100/1000 Mbit Ethernet port to fully utilize speeds that 802.11ac protocol provides.
– LHG 5 ac-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
– LHG 5 ac (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
Technical Specifications:
| CPU nominal frequency | 716 MHz |
| CPU core count | 4 |
| Size of RAM | 256 MB |
| Storage | 16 MB Flash |
| 10/100/1000 Ethernet ports | 1 |
| Wireless | Built-in 5 GHz 802.11a/n/ac, dual-chain |
| Wireless regulations | Specific frequency range can be limited by country regulations |
| Wireless chip model | IPQ-4018 |
| Operating frequency | International: 5150 – 5875 MHz USA 5170 – 5250 MHz and 5725 – 5835 MHz |
| Antenna gain | 24 +/- 0.5 dBi |
| Antenna beam width | 7° |
| PoE in | Yes |
| Supported input voltage | 10 V – 30 V (passive PoE) |
| Wind loading | 186N @ 205 km/h |
| Operating temperature | -40 to 70° C |
| Operating humidity | 5 to 95% noncondensing |
| Shock and vibration | ETSI300-019-1.4 |
| ETSI specification | EN 302 326 DN2 |
| Ingress protection | IP55 |
| Dimensions | dia. 391 x 222 mm; package 450 x 450 x 145 mm |
| Weight | Unit: 560 g; package: 1.98 kg |
| Max Power consumption | 7 W |
| License level | 3 |
