Overview

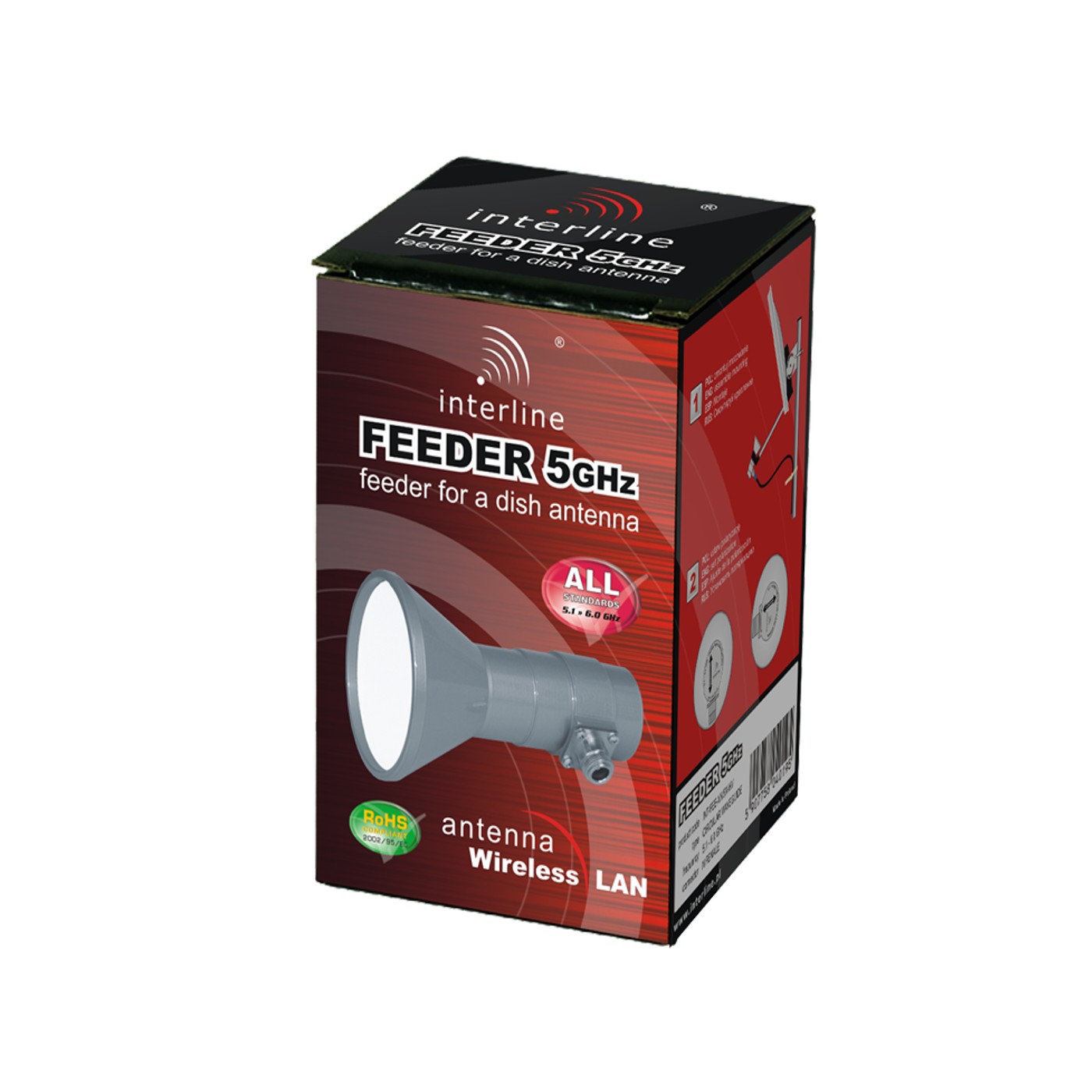

Feeder for dish antennas, made in waveguide technology. The precise shape of the aluminum die-cast takes full advantage of the antenna aperture, and excellent electrical parameters provide a high gain on the parabolic antenna: 29 dBi for the dish with a diameter of 60 cm, 32 dBi for the dish of 90 cm and 35 dBi for the 120 cm dish.
Specifications
| Electrical | |
|---|---|
| Frequency (min) |
5 100MHz
|
| Frequency (max) | 6 000MHz |
| VSWR (max) | 2.80:1 |
| DC Ground | no |
| Impedance | 50Ω |
| Mechanical | |
| Connector | N female |
| Mounting Diameter | ø 40mm |
| Dimensions (excl. mount) | 136x86x86mm |
| Weight (incl. mount) | 0.24kg |
| Environmental | |
| Enviroment | Outdoor |
| Windload | 19N (@170km/h) |
| IP64 | |
