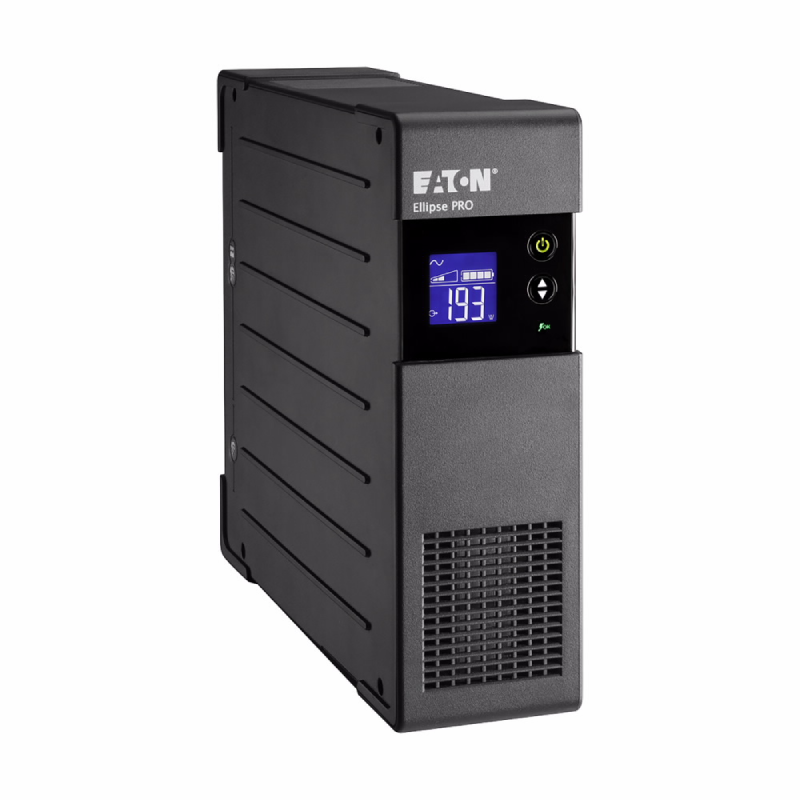

Eaton Ellipse PRO UPS FR, 850 VA, 510 W, Input: C14, Outputs: (3) French, (1) French surge only, Tower
Technical Specifications:
PRODUCT NAME
Eaton Ellipse PRO UPS
CATALOG NUMBER
ELP850FR
PRODUCT LENGTH/DEPTH
82 mm
PRODUCT HEIGHT
260 mm
PRODUCT WIDTH
285 mm
PRODUCT WEIGHT
7.3 kg
COMPLIANCES
CE Marked
CERTIFICATIONS
IEC/EN 62040-1
IEC/EN 62040-2
CE
EAC
IEC/EN 62040-2
CE
EAC
UPC
743172437402
PRODUCT SPECIFICATIONS
SECONDARY FREQUENCY – MAX
60 Hz
WATTAGE
510W
OUTPUT POWER FACTOR
0.6
FORM FACTOR
Tower
INCLUDES NETWORK CARD
No
INPUT CONNECTION
Protective contact (SCHUKO)
INPUT VOLTAGE – MIN
150 V
OUTPUT VOLTAGE – MAX
284 V
SECONDARY FREQUENCY – MIN
50 Hz
SOFTWARE COMPATIBILITY
Eaton UPS Companion (enables safe system shutdown, energy usage metering and configuration of UPS settings)
BATTERY REPLACEMENT
User replaceable
BATTERY TYPE
Sealed, lead-acid
EFFICIENCY
97
SPECIAL FEATURES
Convenient extra-flat design for easy installation in any office environment
Automatic Voltage Regulation (AVR)
High performance surge-protection device compliant with IEC 61643-11 standard
Data line protection to ensure that the internet line (including xDSL) is protected against surges
LCD display for real-time status and measurements
4 outlets to connect your PC + peripherals
EcoControl function helps you save up to 20 % energy compared to previous generation UPSs
HID-compliant USB port (cable supplied), for automatic integration with major operating systems (Windows/Mac OS/Linux)
Easy to replace battery helps to extend UPS service life
Automatic Voltage Regulation (AVR)
High performance surge-protection device compliant with IEC 61643-11 standard
Data line protection to ensure that the internet line (including xDSL) is protected against surges
LCD display for real-time status and measurements
4 outlets to connect your PC + peripherals
EcoControl function helps you save up to 20 % energy compared to previous generation UPSs
HID-compliant USB port (cable supplied), for automatic integration with major operating systems (Windows/Mac OS/Linux)
Easy to replace battery helps to extend UPS service life
CONSTRUCTION TYPE
Free standing model
OUTPUT VOLTAGE – MIN
176 V
COLOR
Black
EXTENDED BATTERY CAPABILITY
No
OUTPUT VOLTAGE RANGE
176-284 V
TOPOLOGY
Line-interactive
SURGE PROTECTION
Yes
BACK-UP TIME
8.5 min
INPUT NOMINAL VOLTAGE
230V default (220/230/240V)
INPUT FREQUENCY RANGE
46-70 Hz
INPUT VOLTAGE – MAX
285 V
VOLTAGE TYPE
AC
PHASE (OUTPUT)
1
BATTERY MANAGEMENT
Replaceable batteries, Automatic battery test, deep-discharge protection, cold-start capable
AUTO SHUTDOWN FUNCTION
Yes
OPERATING TEMPERATURE – MIN
0 °C
VA RATING
850 VA
POTENTIAL FREE SWITCH CONTACT
No
RECEPTACLE
(3) French, (1) French surge only
PHASE (INPUT)
1
PACKAGE CONTENTS
Input cable
USB cable
User manual
Safety instructions
USB cable
User manual
Safety instructions
NOISE LEVEL
<25 dB at 1 meter
FEED TYPE
1
RUNTIME GRAPH
View runtime graph
USER INTERFACE
LCD (UPS status and measurements, configuration of UPS settings)
BATTERY QUANTITY
1
OPERATING TEMPERATURE – MAX
35 °C
VOLTAGE
230V
INPUT CORD LENGTH
1.5 m
TEMPERATURE RANGE
0° to 35°C (32° to 95°F)
ETHERNET INTERFACE
No
COMMUNICATION
USB port (HID compliant)
RELATIVE HUMIDITY
0-85% non-condensing
OUTPUT APPARENT POWER
850 VA
RACK MOUNTING KIT
No
OUTPUT FREQUENCY
50/60 Hz
RUNTIME AT FULL LOAD
1 min
TYPE OF INTERFACE
USB
PRIMARY FREQUENCY – MIN
46 Hz
BATTERY RATING
12 V / 9 Ah
TYPE
UPS
OUTPUT NOMINAL VOLTAGE
230V default (220/230/240V)
EXPANSION SLOTS
No
INPUT VOLTAGE RANGE
165-285 V (adjustable to 150-285 V)
NOMINAL FREQUENCY
50/60 Hz
PRIMARY FREQUENCY – MAX
70 Hz
ALTITUDE
2000 m
