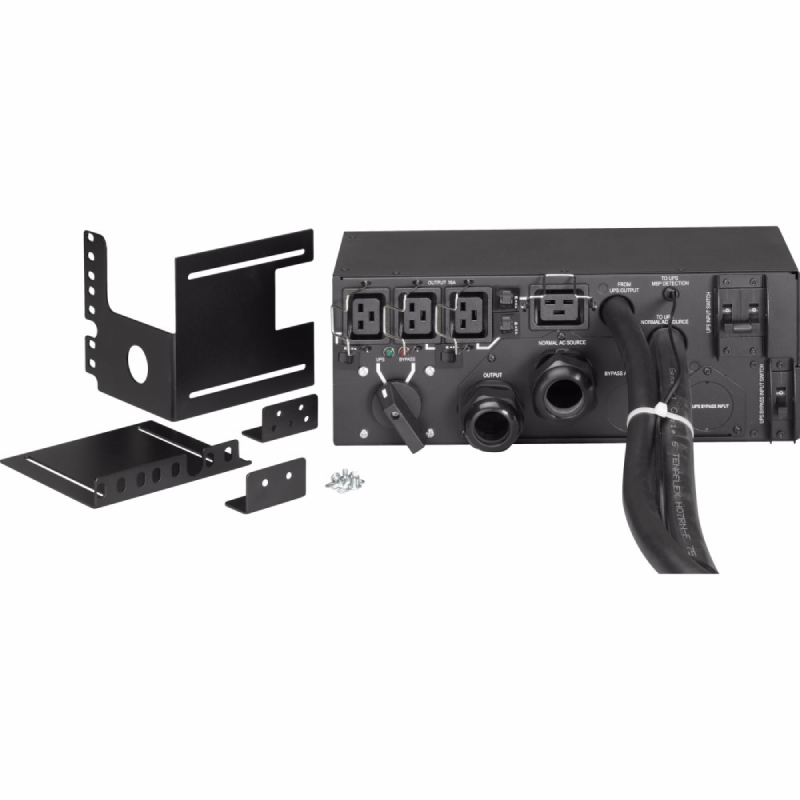

Eaton HotSwap MBP maintenance bypass, 11000 VA 3:1, Input: Hardwired, 346-415V, Outlets: (4) C19, Hardwired
Technical Specifications:
PRODUCT NAME
Eaton HotSwap MBP maintenance bypass
CATALOG NUMBER
MBP11KI31
UPC
743172040169
PRODUCT LENGTH/DEPTH
185 mm
PRODUCT HEIGHT
270 mm
PRODUCT WIDTH
410 mm
PRODUCT WEIGHT
5.96 kg
COMPLIANCES
CE Marked
CERTIFICATIONS
CE
MODEL CODE
Eaton HotSwap MBP 11000i 3:1
PRODUCT SPECIFICATIONS
PHASE
Three-phase
ELECTRICAL CONNECTION
Screwed terminal
MOUNTING DIMENSION (STANDARDIZED)
482.6 mm (19 inch)
FORM FACTOR
3U
MOUNTING DIRECTION
Horizontal
PACKAGE CONTENTS
Maintenance Bypass
Cable locking system
Rack-mounting kit
User manual
Cable locking system
Rack-mounting kit
User manual
INPUT CONNECTION
Other
NUMBER OF OUTPUTS HARDWIRED
1
FITTED WITH:
Mounting material
LED indication
LED indication
OPERATING TEMPERATURE
0° to 40°C (32° to 104°F)
ETHERNET INTERFACE
No
NUMBER OF OUTLETS WITH EARTH PIN
4
MASS CONFIGURATION
No
COMMUNICATION
No
NUMBER OF OUTPUTS C19
4
OUTLET CONTROL
No
SWITCHABLE
No
INPUT VOLTAGE
346-415V
COLOR
Black
SNMP
No
OVER VOLTAGE CATEGORY
2
OUTLETS
(4) C19, Hardwired
TYPE
Hotswap MBP
VA RATING
11000 VA
SERIAL INTERFACE
No
MOUNTING DIMENSION (METRICAL)
270
