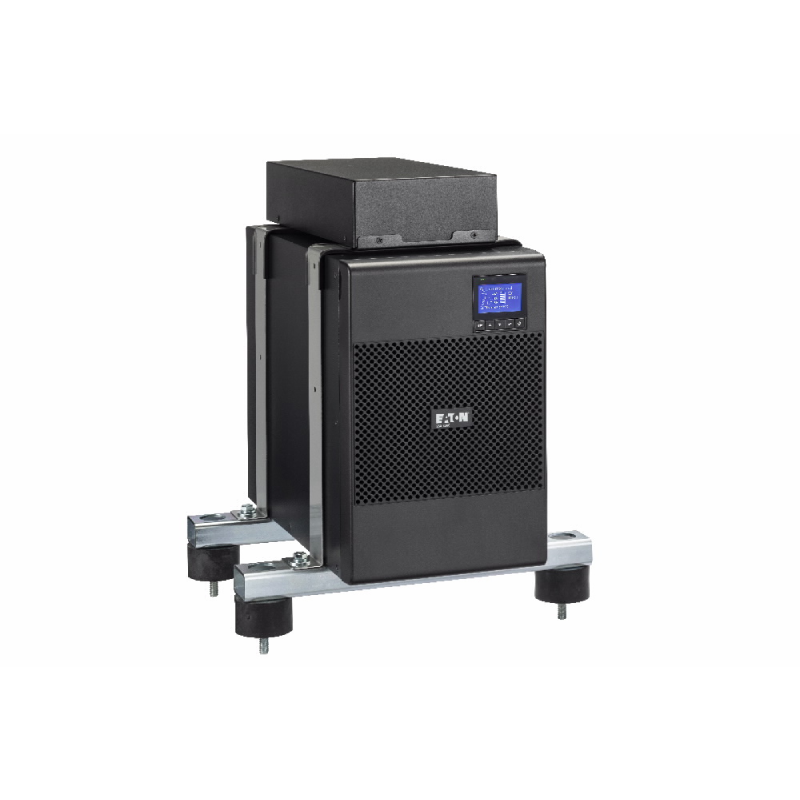

Eaton 9SX Marine UPS, 3000 VA, 2700 W, Input: C20, Outputs: (8) C13, (1) C19, Tower
Technical Specifications:
PRODUCT NAME
Eaton 9SX Marine UPS
CATALOG NUMBER
9SX3000IM
UPC
743172091024
PRODUCT LENGTH/DEPTH
41.2 cm
PRODUCT HEIGHT
34.6 cm
PRODUCT WIDTH
21.4 cm
PRODUCT WEIGHT
34 kg
COMPLIANCES
CE Marked
TUV
cULus Listed
CSA 22.2
FCC part 15 Class B
CISPR22 Class B
TUV
cULus Listed
CSA 22.2
FCC part 15 Class B
CISPR22 Class B
CERTIFICATIONS
IEC/EN 62040-1
UL 1778
IEC/EN 62040-2
CE
cULus Listed
EAC
DNV GL Certified
UL 1778
IEC/EN 62040-2
CE
cULus Listed
EAC
DNV GL Certified
BATTERY
BATTERY TYPE
Sealed, lead-acid
RUNTIME GRAPH
View runtime graph
BATTERY REPLACEMENT
Hot-swappable internal batteries and extended battery modules (EBMs)
BATTERY QUANTITY
8
BATTERY MANAGEMENT
ABM & Temperature compensated charging method (user selectable)
Automatic battery test
Deep discharge protection
Automatic recognition of external battery units
Automatic battery test
Deep discharge protection
Automatic recognition of external battery units
BATTERY RATING
12 V / 9 Ah
EXTENDED BATTERY CAPABILITY
Yes
ELECTRICAL OUTPUT
RECEPTACLE
(8) C13, (1) C19
VOLTAGE
230V
WATTAGE
2700 W
OUTPUT POWER FACTOR
0.9
OUTPUT VOLTAGE RANGE
200/208/220/230/240 V +/- 2%
OUTPUT WAVEFORM
Sine wave
OUTPUT NOMINAL VOLTAGE
230V default (200/208/220/230/240V)
VOLTAGE DISTORTION OUTPUT (LINEAR LOAD) – MAX
3
FEED TYPE
1
TOPOLOGY
Online/Double-conversion
VA RATING
3000 VA
ELECTRICAL INPUT
INPUT CONNECTION
C20
INPUT NOMINAL VOLTAGE
230V default (200/208/220/230/240V)
NOMINAL FREQUENCY
50/60 Hz
INPUT POWER FACTOR
>.99
INPUT CORD LENGTH
1.8m
INPUT VOLTAGE RANGE
200-276 V (140 V-276 V with derating)
INPUT FREQUENCY RANGE
40-70 Hz
COMMUNICATIONS
INCLUDES NETWORK CARD
No
COMMUNICATION
USB port (HID compliant)
Serial port (RS232)
Mini-terminal block for remote power off
Mini-terminal block for output relay
Dry contacts (2 outputs, 1 input, optocoupler, DB9)
Serial port (RS232)
Mini-terminal block for remote power off
Mini-terminal block for output relay
Dry contacts (2 outputs, 1 input, optocoupler, DB9)
ETHERNET INTERFACE
No
USER INTERFACE
Multilingual graphical LCD display
POTENTIAL FREE SWITCH CONTACT
Yes
EXPANSION SLOTS
One slot for optional communication card
SOFTWARE COMPATIBILITY
Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
ENVIRONMENTAL
ALTITUDE
3000 m
NOISE LEVEL
<45 dB at 1 meter
TEMPERATURE RANGE
0° to 40°C (32° to 104°F)
RELATIVE HUMIDITY
0-96% non-condensing
ADDITIONAL SPECIFICATIONS
CONSTRUCTION TYPE
Free standing model
PACKAGE CONTENTS
UPS
Quickstart guide
(2) IEC-IEC output cables
Serial cable
USB cable
Quickstart guide
(2) IEC-IEC output cables
Serial cable
USB cable
PHASE (OUTPUT)
1
INTERNAL BYPASS
Yes
AUTO SHUTDOWN FUNCTION
Yes
COLOR
Black
EFFICIENCY
92.4
RACK MOUNTING KIT
No
PHASE (INPUT)
1
HOT SWAP POWER
No
