Περιγραφή

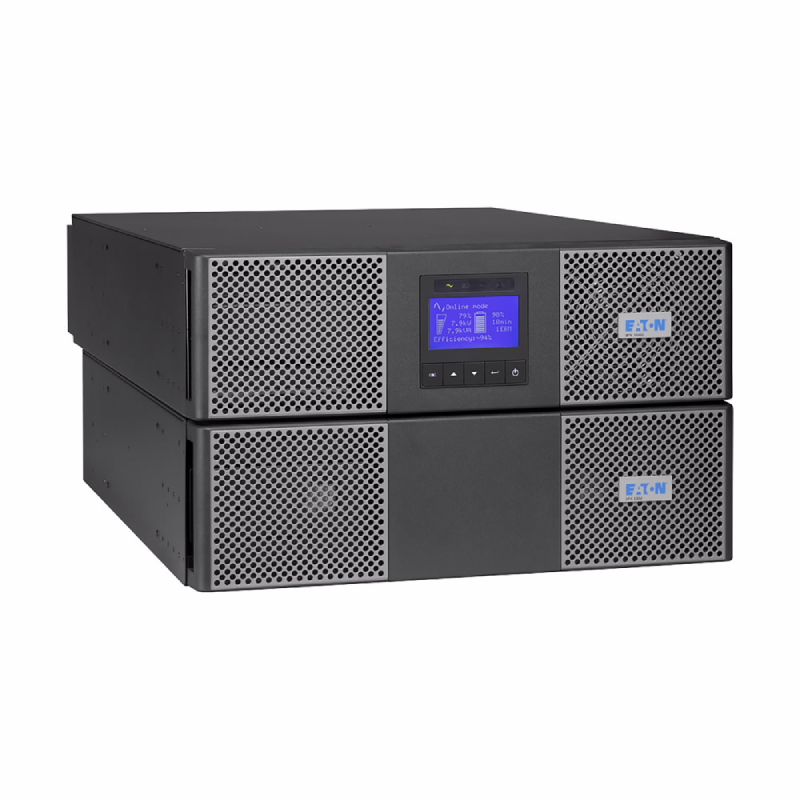

Eaton 9PX UPS HotSwap, 8 kVA, 7.2 kW, Input: Hardwired, Outputs: (4) C19, Hardwired, Rack/tower, 6U
Technical Specifications:
PRODUCT NAME
Eaton 9PX UPS
CATALOG NUMBER
9PX8KIBP
MODEL CODE
Eaton 9PX 8000i HotSwap
UPC
743172040244
PRODUCT LENGTH/DEPTH
70 cm
PRODUCT HEIGHT
44 cm
PRODUCT WIDTH
26 cm
PRODUCT WEIGHT
84 kg
WARRANTY
2 year
COMPLIANCES
CE Marked
TUV
TUV
CERTIFICATIONS
IEC/EN 62040-1
IEC/EN 62040-2
CE
EAC
IEC/EN 62040-2
CE
EAC
MODEL CODE
Eaton 9PX 8000i HotSwap
BATTERY
RUNTIME GRAPH
View runtime graph
BATTERY MANAGEMENT
ABM & Temperature compensated charging method (user selectable)
Automatic battery test
Deep discharge protection
Automatic recognition of external battery units
Automatic battery test
Deep discharge protection
Automatic recognition of external battery units
BATTERY REPLACEMENT
Hot-swappable battery modules
BATTERY QUANTITY
20
BATTERY RATING
12 V / 9 Ah
BATTERY TYPE
Sealed, lead-acid
EXTENDED BATTERY CAPABILITY
Yes
ELECTRICAL OUTPUT
RECEPTACLE
(4) C19, Hardwired
OUTPUT POWER FACTOR
0.9
OUTPUT WAVEFORM
Sine wave
VOLTAGE
230V
VA RATING
8 kVA
WATTAGE
7.2 kW
OUTPUT NOMINAL VOLTAGE
230V default (200/208/220/230/240/250V)
VOLTAGE DISTORTION OUTPUT (LINEAR LOAD) – MAX
2
OUTPUT FREQUENCY
50/60 Hz
FEED TYPE
1
TOPOLOGY
Online/Double-conversion
ELECTRICAL INPUT
INPUT CONNECTION
Hardwired/fixed connection
INPUT NOMINAL VOLTAGE
230V default (200/208/220/230/240/250V)
INPUT VOLTAGE RANGE
176-276 V (100-276 V with derating)
NOMINAL FREQUENCY
50/60 Hz
INPUT FREQUENCY RANGE
40-70 Hz
INPUT POWER FACTOR
>.99
COMMUNICATIONS
COMMUNICATION
USB port (HID compliant)
Serial port (RS232)
Mini terminal block for remote On/Off
Mini-terminal block for remote power off
Dry contacts (4 outputs, relay, DB9)
DB15 for parallel operation
Serial port (RS232)
Mini terminal block for remote On/Off
Mini-terminal block for remote power off
Dry contacts (4 outputs, relay, DB9)
DB15 for parallel operation
EXPANSION SLOTS
One slot for optional communication card
ETHERNET INTERFACE
No
INCLUDES NETWORK CARD
No
SOFTWARE COMPATIBILITY
Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
USER INTERFACE
Multilingual graphical LCD display
TYPE OF INTERFACE
Other
POTENTIAL FREE SWITCH CONTACT
Yes
ENVIRONMENTAL
ALTITUDE
3000 m
BTU RATING
Online: 1472
NOISE LEVEL
<48 dB at 1 meter
RELATIVE HUMIDITY
0-95% non-condensing
TEMPERATURE RANGE
0° to 40°C (32° to 104°F)
ADDITIONAL SPECIFICATIONS
FORM FACTOR
Rack/tower
RACK SIZE
6U
CONSTRUCTION TYPE
Free standing model
COLOR
Black/silver
RACK MOUNTING KIT
No
PACKAGE CONTENTS
Power Module
Extended battery module (EBM)
Maintenance Bypass
USB cable
Serial cable
Battery cable with comms for automatic battery cabinet recognition
(2) Supports for tower mounting
Link plate
Safety instructions
Quickstart guide
Extended battery module (EBM)
Maintenance Bypass
USB cable
Serial cable
Battery cable with comms for automatic battery cabinet recognition
(2) Supports for tower mounting
Link plate
Safety instructions
Quickstart guide
EFFICIENCY
95
PHASE (INPUT)
1
PHASE (OUTPUT)
1
INTERNAL BYPASS
Yes
HOT SWAP POWER
Yes
AUTO SHUTDOWN FUNCTION
Yes
