Περιγραφή

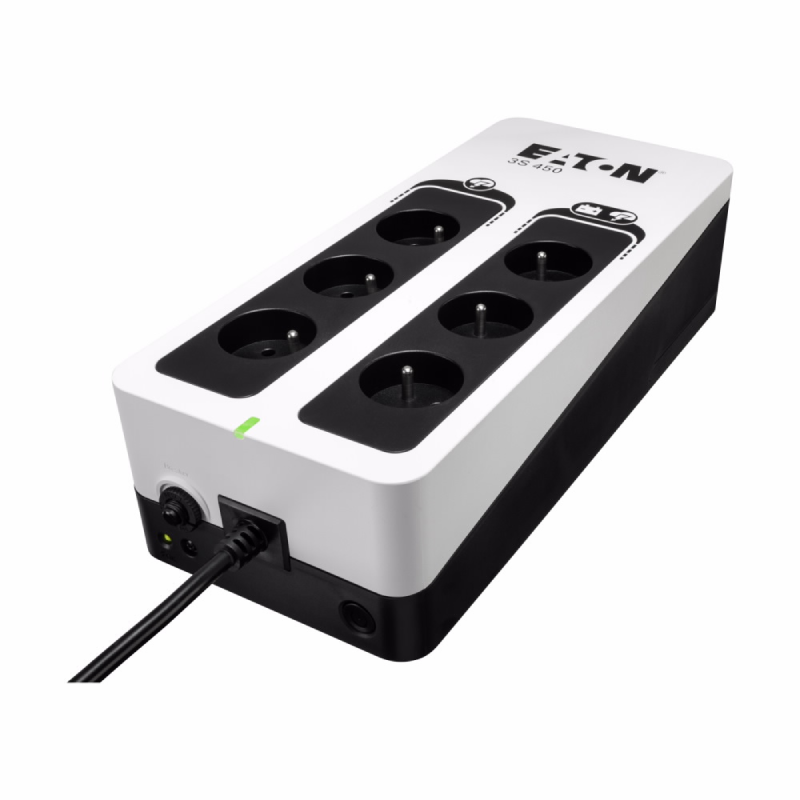

Eaton 3S Gen2 UPS FR, 450 VA, 270 W, Input: French, Outputs: (3) French, (3) French surge only, Tower
Technical Specifications:
PRODUCT NAME
Eaton 3S Gen2 UPS
CATALOG NUMBER
3S450F
PRODUCT LENGTH/DEPTH
83.5 mm
PRODUCT HEIGHT
140 mm
PRODUCT WIDTH
325 mm
PRODUCT WEIGHT
3.1 kg
COMPLIANCES
CE Marked
CERTIFICATIONS
IEC/EN 62040-2
CE
EAC
IEC/EN 62040-1
CE
EAC
IEC/EN 62040-1
UPC
743172101785
PRODUCT SPECIFICATIONS
SECONDARY FREQUENCY – MAX
60 Hz
WATTAGE
270 W
OUTPUT POWER FACTOR
0.6
FORM FACTOR
Tower
INCLUDES NETWORK CARD
No
INPUT CONNECTION
Protective contact (SCHUKO)
INPUT VOLTAGE – MIN
161 V
OUTPUT VOLTAGE – MAX
284 V
SECONDARY FREQUENCY – MIN
50 Hz
SOFTWARE COMPATIBILITY
Eaton UPS Companion (enables safe system shutdown, energy usage metering and configuration of UPS settings)
BATTERY REPLACEMENT
User replaceable
BATTERY TYPE
Sealed, lead-acid
EFFICIENCY
98
SPECIAL FEATURES
Attractive design and glossy finish make the 3S a perfect fit for the modern office environment
Compact unit fits on or under your desk or can be mounted on a wall
High performance surge-protection device compliant with IEC 61643-11 standard
6 outlets to connect your PC + peripherals
French (FR) outlets for easy connection
Easy to replace battery helps to extend UPS service life
Compact unit fits on or under your desk or can be mounted on a wall
High performance surge-protection device compliant with IEC 61643-11 standard
6 outlets to connect your PC + peripherals
French (FR) outlets for easy connection
Easy to replace battery helps to extend UPS service life
CONSTRUCTION TYPE
Free standing model
OUTPUT VOLTAGE – MIN
161 V
COLOR
Black/White
EXTENDED BATTERY CAPABILITY
No
OUTPUT VOLTAGE RANGE
184-264 V (adjustable to 161-284 V)
TOPOLOGY
Offline
SURGE PROTECTION
Yes
BACK-UP TIME
6.5 min
INPUT NOMINAL VOLTAGE
230V default (220/230/240V)
INPUT FREQUENCY RANGE
46-70 Hz
INPUT VOLTAGE – MAX
284 V
VOLTAGE TYPE
AC
PHASE (OUTPUT)
1
BATTERY MANAGEMENT
Replaceable batteries, Automatic battery test, deep-discharge protection, cold-start capable
AUTO SHUTDOWN FUNCTION
Yes
OPERATING TEMPERATURE – MIN
0 °C
VA RATING
450 VA
POTENTIAL FREE SWITCH CONTACT
No
RECEPTACLE
(3) French, (3) French surge only
PHASE (INPUT)
1
PACKAGE CONTENTS
Quickstart guide
Safety instructions
Safety instructions
NOISE LEVEL
<25 dB at 1 meter
FEED TYPE
1
RUNTIME GRAPH
View runtime graph
USER INTERFACE
LEDs
BATTERY QUANTITY
1
OPERATING TEMPERATURE – MAX
40 °C
VOLTAGE
230V
INPUT CORD LENGTH
1.5 m
ETHERNET INTERFACE
No
RELATIVE HUMIDITY
0-85% non-condensing
OUTPUT APPARENT POWER
450 VA
RACK MOUNTING KIT
No
OUTPUT FREQUENCY
50/60 Hz
RUNTIME AT FULL LOAD
2 min
TYPE OF INTERFACE
None
PRIMARY FREQUENCY – MIN
46 Hz
BATTERY RATING
12 V / 4.5 Ah
TYPE
UPS
OUTPUT NOMINAL VOLTAGE
230V default (220/230/240V)
EXPANSION SLOTS
No
INPUT VOLTAGE RANGE
184-264 V (adjustable to 161-284 V)
NOMINAL FREQUENCY
50/60 Hz
PRIMARY FREQUENCY – MAX
70 Hz
ALTITUDE
2000 m
