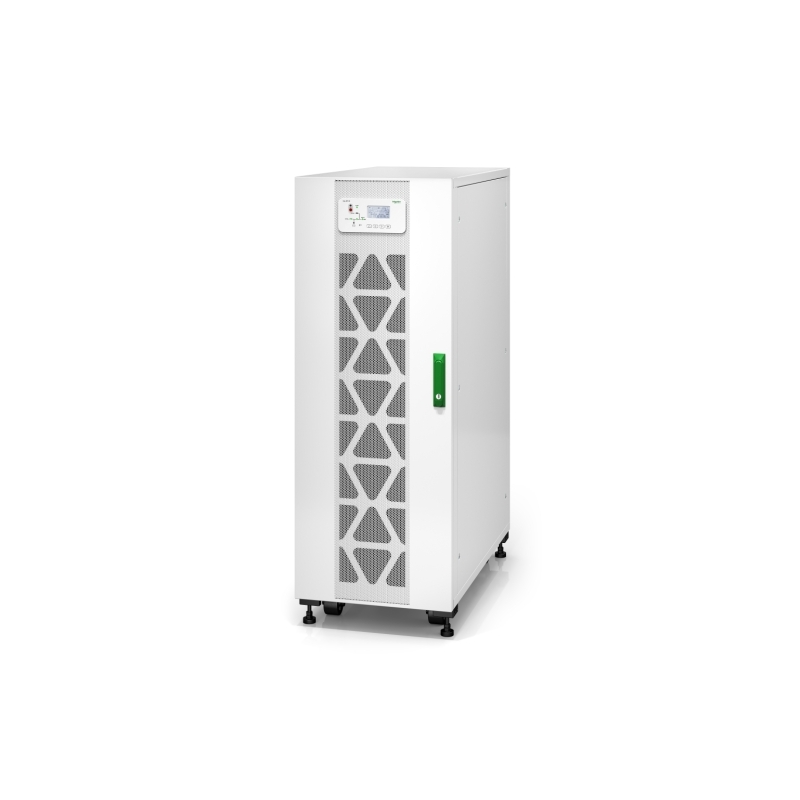

Easy UPS 3S 30 kVA 400 V 3:3 UPS for internal batteries

Easy UPS 3S 30 kVA 400 V 3:3 UPS for internal batteries

7.500,00 €

Κωδικός προϊόντος: E3SUPS30KHB Κατηγορία:

Περιγραφή

Easy UPS 3S 30 kVA 400 V 3:3 UPS for internal batteries
High-efficiency 3-phase UPS that features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 30 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. This UPS is for internal batteries, but is supplied without batteries, so you can easily customize the battery runtime. For battery runtime details, see the runtime charts published under the Documents tab.
Includes: Dust filter, Installation guide
Technical Specifications:

Output

Max Configurable Power (Watts)

30.0kWatts / 30.0kVA

Output Voltage Distortion

Less than 3 %

Output Frequency (sync to mains)

50 Hz Sync to mains, 60 Hz Sync to mains

Other Output Voltages

380 V, 415 V

Topology

Double conversion online

Output Voltage THD

< 3% linear load

Output Voltage Tolerance

+/- 1.5 %

Input

Input frequency

45 – 65 Hz

Input voltage range for main operations

304 – 477V

Input Total Harmonic Distortion

Less than 3 % for full load

Other Input Voltages

380 V, 415 V

Input Power Factor at Full Load

0.99

Batteries & Runtime

Battery type

VRLA

Nominal Battery Voltage

240 V

Battery Slots Empty

4

Maximum Available Short Circuit Current

10kAmps

Efficiency

View Efficiency Graph

Communications & Management

Interface Port(s)

E3S_Parallel, E3S_TempSensor

Physical

Maximum Height

1400MM, 140.0CM

Maximum Width

500MM, 50.0CM

Maximum Depth

969MM, 96.9CM

Net Weight

152.0KG

Shipping weight

190.0KG

Shipping Height

1640MM, 164.0CM

Shipping Width

683MM, 68.3CM

Shipping Depth

1114MM, 111.4CM

Color

White

Environmental

Operating Temperature

0 – 40 °C

Operating Relative Humidity

0 – 95 (Non-condensing) %

Operating Elevation

0 – 1015.9meters

Storage Temperature

-15 – 40 °C

Storage Relative Humidity

0 – 95 (Non-condensing) %

Storage Elevation

0 – 15240meters

Audible noise at 1 meter from surface of unit

63.0dBA

Online thermal dissipation

1410.0BTU/hr

Protection Class

IP20

Conformance

Approvals

CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM

Standard warranty

1 year on-site repair or replace with factory authorized Start-Up

Sustainable Offer Status

RoHS

Compliant

Other Environmental Compliance

China RoHS
