Περιγραφή

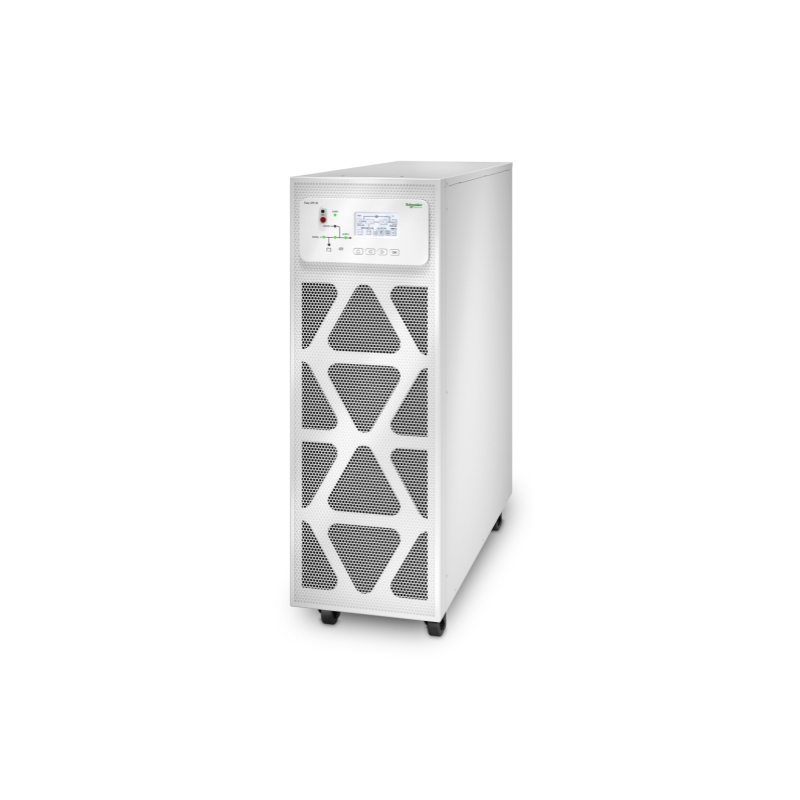

Easy UPS 3S 30 kVA 400 V 3:3 UPS for external batteries
High-efficiency 3-phase UPS that features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 30 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. This UPS is supplied without batteries, so you can easily customize the battery solution.
Includes: Dust filter, Installation guide
Technical Specifications:
Output
Max Configurable Power (Watts)
30.0kWatts / 30.0kVA
Output Voltage Distortion
Less than 3 %
Output Frequency (sync to mains)
50 Hz Sync to mains, 60 Hz Sync to mains
Other Output Voltages
380 V, 415 V
Load Crest Factor
3 : 1
Topology
Double conversion online
Overload Operation
10 minutes at 125% and 60 seconds at 150%
Bypass
Built-in maintenance bypass
Input
Input frequency
45 – 65 Hz
Input voltage range for main operations
304 – 477V
Other Input Voltages
380 V, 415 V
Input Power Factor at Full Load
0.99
Batteries & Runtime
Battery type
External battery system
Maximum Available Short Circuit Current
10kAmps
Efficiency
Communications & Management
Interface Port(s)
E3S_Parallel, E3S_TempSensor
Physical
Maximum Height
770MM, 77.0CM
Maximum Width
250MM, 25.0CM
Maximum Depth
800MM, 80.0CM
Net Weight
60.0KG
Shipping weight
77.0KG
Shipping Height
1015MM, 101.5CM
Shipping Width
400MM, 40.0CM
Shipping Depth
982MM, 98.2CM
Color
White
Environmental
Operating Temperature
0 – 40 °C
Operating Relative Humidity
0 – 95 (Non-condensing) %
Operating Elevation
0 – 1000.05meters
Storage Temperature
-15 – 40 °C
Storage Relative Humidity
0 – 95 (Non-condensing) %
Storage Elevation
0 – 14999.8meters
Audible noise at 1 meter from surface of unit
63.0dBA
Online thermal dissipation
1410.0BTU/hr
Protection Class
IP20
Conformance
Approvals
CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM
Standard warranty
1 year on-site repair or replace with factory authorized Start-Up
Sustainable Offer Status
RoHS
Compliant
Other Environmental Compliance
China RoHS
