Easy UPS 3S 20 kVA 400 V 3:3 UPS for External Batteries

Easy UPS 3S 20 kVA 400 V 3:3 UPS for External Batteries

6.406,25 €

Κωδικός προϊόντος: E3SUPS20KH Κατηγορία:

Περιγραφή

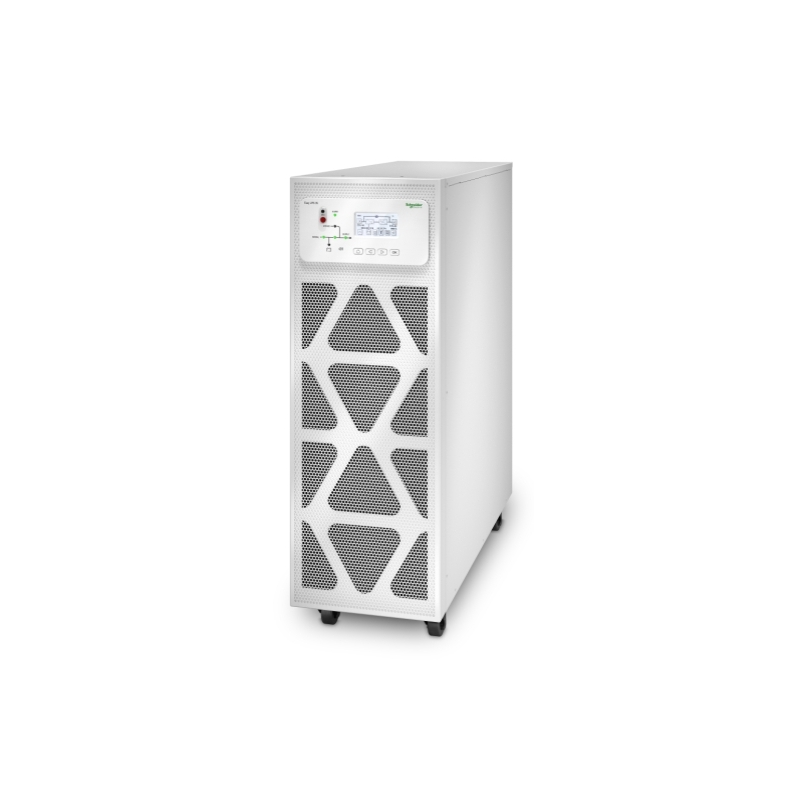

Easy UPS 3S 20 kVA 400 V 3:3 UPS for external batteries
High-efficiency 3-phase UPS that features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 20 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. This UPS is supplied without batteries, so you can easily customize the battery solution.
Includes: Dust filter, Installation guide

Technical Specifications:

Output

Max Configurable Power (Watts)

20.0kWatts / 20.0kVA

Output Voltage Distortion

Less than 3 %

Output Frequency (sync to mains)

50 Hz Sync to mains, 60 Hz Sync to mains

Other Output Voltages

380 V, 415 V

Load Crest Factor

3 : 1

Topology

Double conversion online

Overload Operation

10 minutes at 125% and 60 seconds at 150%

Output Voltage THD

< 3% linear load

Bypass

Built-in maintenance bypass

Input

Input frequency

45 – 65 Hz

Input voltage range for main operations

304 – 477V

Other Input Voltages

380 V, 415 V

Input Power Factor at Full Load

0.99

Batteries & Runtime

Battery type

External battery system

Maximum Available Short Circuit Current

10kAmps

Efficiency

View Efficiency Graph

Communications & Management

Interface Port(s)

E3S_Parallel, E3S_TempSensor

Physical

Maximum Height

770MM, 77.0CM

Maximum Width

250MM, 25.0CM

Maximum Depth

800MM, 80.0CM

Net Weight

58.0KG

Shipping weight

75.0KG

Shipping Height

1015MM, 101.5CM

Shipping Width

400MM, 40.0CM

Shipping Depth

982MM, 98.2CM

Color

White

Environmental

Operating Temperature

0 – 40 °C

Operating Relative Humidity

0 – 95 (Non-condensing) %

Operating Elevation

0 – 1000.05meters

Storage Temperature

-15 – 40 °C

Storage Relative Humidity

0 – 95 (Non-condensing) %

Storage Elevation

0 – 14999.8meters

Audible noise at 1 meter from surface of unit

60.0dBA

Online thermal dissipation

900.0BTU/hr

Protection Class

IP20

Conformance

Approvals

CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM

Standard warranty

1 year on-site repair or replace with factory authorized Start-Up

Sustainable Offer Status

RoHS

Compliant

Other Environmental Compliance

China RoHS
