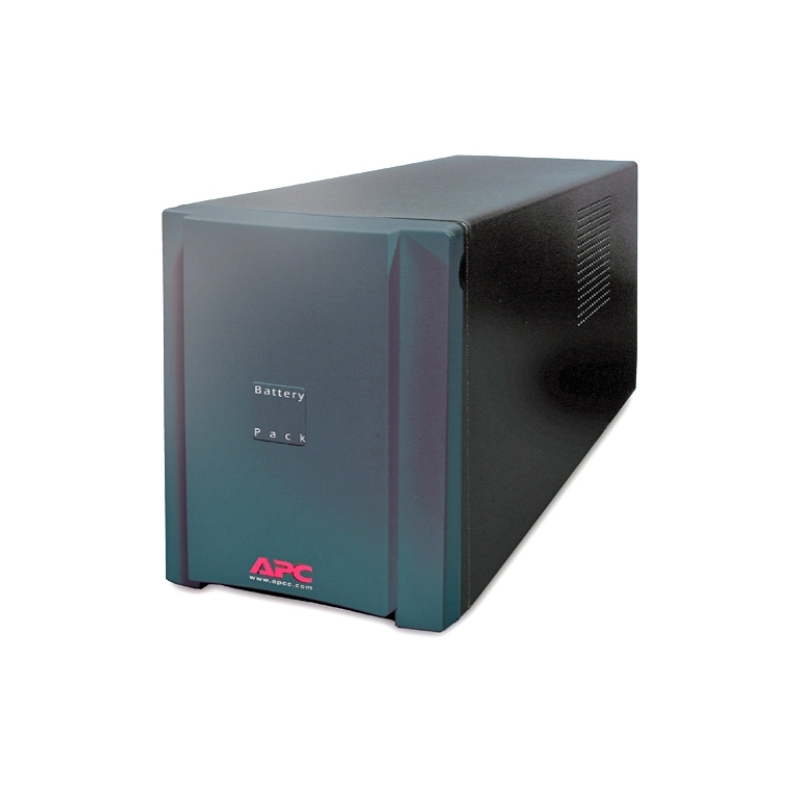

APC Smart-UPS XL Battery Pack 24V
Extended-run battery systems provide flexible runtime to critical Smart-UPS applications.
Includes: User Manual
Technical Specifications:
Output
Output Voltage Distortion
Less than 5 % at full load
Output Frequency (sync to mains)
47 – 53 Hz For 50 Hz nominal Sync to mains, 57 – 63 Hz For 60 Hz nominal Sync to mains
Load Crest Factor
Up to 5 : 1
Waveform type
Sine wave
Input
Number of Power Cords
1
Batteries & Runtime
Battery type
Lead-acid battery
Replacement Battery
RBC11
Expected Battery Life (years)
3 – 5
RBC Quantity
1
Battery Charge Power (Watts)
81.6kWatts
Physical
Maximum Height
216MM, 21.6CM
Maximum Width
170MM, 17.0CM
Maximum Depth
439MM, 43.9CM
Net Weight
31.36KG
Shipping weight
33.18KG
Shipping Height
387MM, 38.7CM
Shipping Width
320MM, 32.0CM
Shipping Depth
591MM, 59.1CM
Color
Black
Units per Pallet
12.0
Environmental
Operating Temperature
0 – 40 °C
Operating Relative Humidity
0 – 95 %
Operating Elevation
0 – 3048meters
Storage Temperature
-15 – 45 °C
Storage Relative Humidity
0 – 95 %
Storage Elevation
0 – 15240meters
Conformance
Standard warranty
2 years repair or replace
Sustainable Offer Status
RoHS
Compliant
EOLI
Available in Documentation tab
Proposition 65 Warning
Available in Documentation tab
