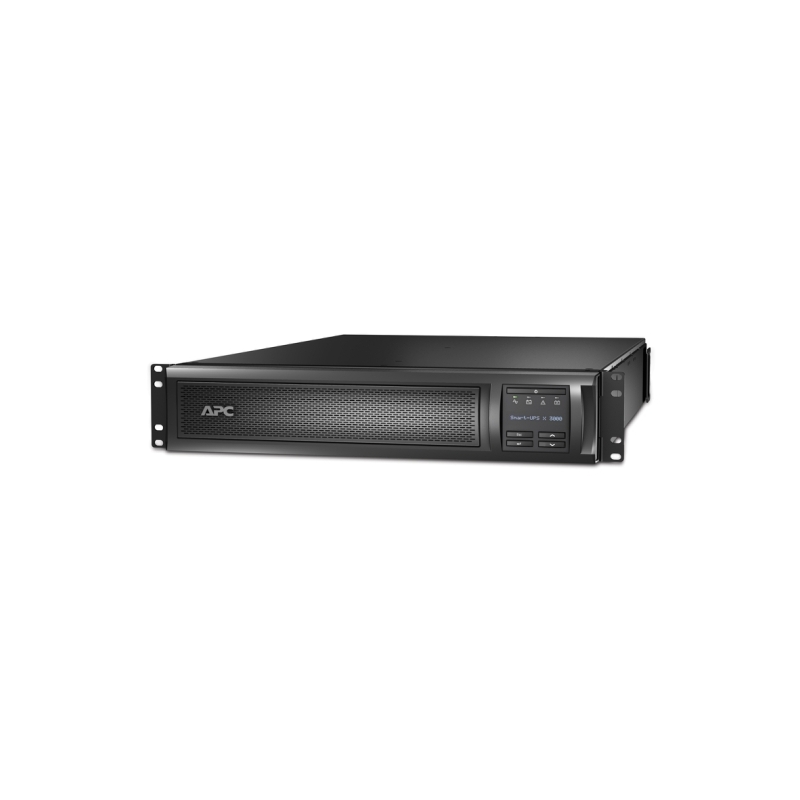

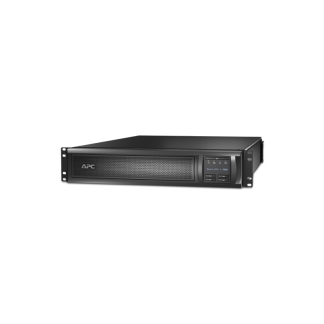

APC Smart-UPS X, Line Interactive, 3kVA, Rack/tower 2U, 208V-230V, 8x C13+1x C19 IEC, Network card, Extended runtime, Rail kit included

APC Smart-UPS X, Line Interactive, 3kVA, Rack/tower 2U, 208V-230V, 8x C13+1x C19 IEC, Network card, Extended runtime, Rail kit included

3.842,97 €

Κωδικός προϊόντος: SMX3000RMHV2UNC Κατηγορία:

Περιγραφή

APC Smart-UPS X, Line Interactive, 3kVA, Rack/tower 2U, 208V-230V, 8x C13+1x C19 IEC, Network card, Extended runtime, Rail kit included
Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Includes: CD with software, Rack mounting support rails, Smart UPS signalling RS-232 cable, Temperature probe, User manual, Web/SNMP management card
Technical Specification:

Output

Max Configurable Power (Watts)

2.7kWatts / 3.0kVA

Output Voltage Distortion

Less than 5 %

Output Frequency (sync to mains)

50/60 Hz +/- 3 Hz Sync to mains

Other Output Voltages

208 V, 220 V, 240 V

Topology

Line interactive

Waveform type

Sine wave

Transfer Time

2-4 ms

Transfer Time

6 ms typical : 10 ms maximum

Input

Input frequency

50/60 Hz +/- 3 Hz Auto-sensing

Input voltage range for main operations

140 – 280V

Number of Power Cords

1

Other Input Voltages

220 V, 240 V

Transfer Time

2-4 ms

Batteries & Runtime

Battery type

Lead-acid battery

Typical recharge time

3hour(s)

Replacement Battery

APCRBC117

Expected Battery Life (years)

3 – 5

RBC Quantity

1

Battery Charge Power (Watts)

245 Watts

Extendable Run Time

1

Communications & Management

Interface Port(s)

RJ-45 Serial, SmartSlot

Pre-Installed SmartSlot™ Cards

AP9631

Control panel

LED status display with on line : on battery : replace battery and overload indicators, Multifunction LCD status and control console

Audible Alarm

Alarm when on battery : distinctive low battery alarm : configurable delays

Emergency Power Off (EPO)

Yes

Surge Protection and Filtering

Surge energy rating

645Joules

Filtering

Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

Maximum Height

85MM, 8.5CM

Maximum Width

432MM, 43.2CM

Maximum Depth

667MM, 66.7CM

Net Weight

37.32KG

Shipping weight

45.36KG

Shipping Height

243MM, 24.3CM

Shipping Width

596MM, 59.6CM

Shipping Depth

869MM, 86.9CM

Color

Black

Pallet Dimensions

39.37inches

# of Layers per Pallet

4.0

# of Units per Layer per Pallet

2.0

Pallet Weight

856.91lbs.

Units per Pallet

8.0

Environmental

Operating Temperature

0 – 40 °C

Operating Relative Humidity

0 – 95 %

Operating Elevation

0 – 3048meters

Storage Temperature

-15 – 45 °C

Storage Relative Humidity

0 – 95 %

Storage Elevation

0 – 15240meters

Audible noise at 1 meter from surface of unit

55.0dBA

Online thermal dissipation

184.0BTU/hr

Conformance

Approvals

C-Tick, CE, EAC, EN 50091-1, EN 50091-2, EN 55022 class A, EN 60950, FCC part 15 class A, GOST, IRAM, UL 1778, VDE

Standard warranty

3 years repair or replace (excluding battery) and 2 years for battery, optional extended warranties available, optional on-site warranties available

Sustainable Offer Status

RoHS

Compliant

PEP

Available in Documentation tab

EOLI

Available in Documentation tab

Proposition 65 Warning

Available in Documentation tab
