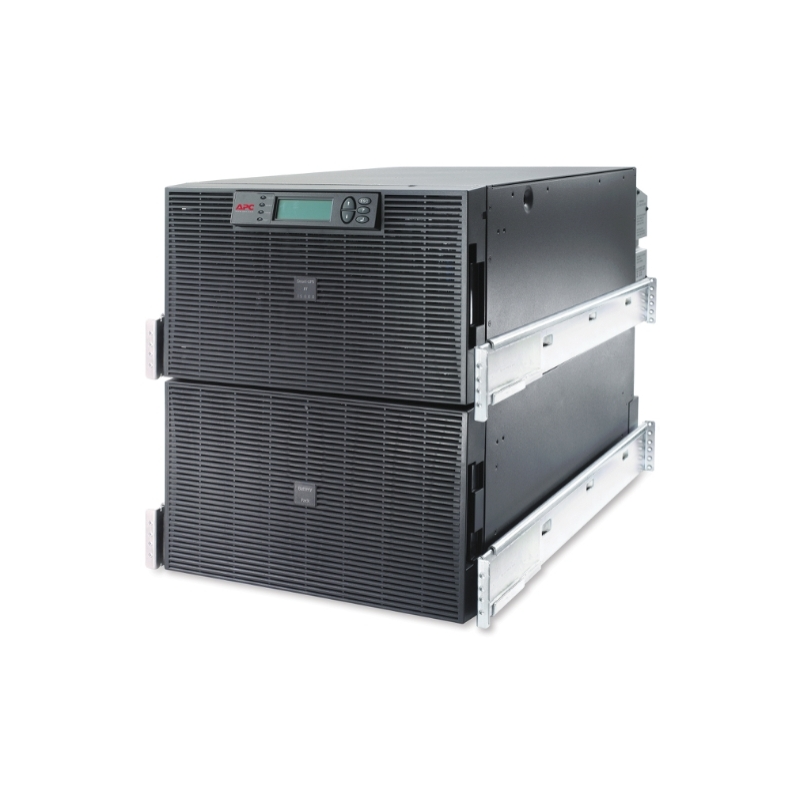

APC Smart-UPS RT 15kVA, 230/400V, LCD, rackmount, 12U, 2x IEC Jumpers & 8x IEC 60320 C19 outlets

APC Smart-UPS RT 15kVA, 230/400V, LCD, rackmount, 12U, 2x IEC Jumpers & 8x IEC 60320 C19 outlets

15.179,38 €

Κωδικός προϊόντος: SURT15KRMXLI Κατηγορία:

Περιγραφή

APC Smart-UPS RT 15kVA, 230/400V, LCD, rackmount, 12U, 2x IEC Jumpers & 8x IEC 60320 C19 outlets
High density, double-conversion on-line power protection with scalable runtime.
Includes: CD with software, Rack mounting support rails, Smart UPS signalling RS-232 cable, User manual, Web/SNMP management card

Technical Specifications:

Output

Max Configurable Power (Watts)

12.0kWatts / 15.0kVA

Output Voltage Note

Configurable for 380 : 400 or 415 V 3 Phase nominal output voltage

Output Voltage Distortion

Less than 5 %

Output Frequency (sync to mains)

50/60 Hz +/- 3 Hz user adjustable +/- 0.1 Hz Sync to mains

Other Output Voltages

220 V, 240 V

Load Crest Factor

3 : 1

Topology

Double conversion online

Waveform type

Sine wave

Overload Operation

60 seconds at 125% and 30 seconds at 150%

Bypass

Built-in static bypass, Internal bypass (automatic and manual), Optional external bypass

Input

Input frequency

40 – 70 Hz Auto-sensing

Input voltage range for main operations

160 – 280V

Input Total Harmonic Distortion

Less than 5 % for full load

Other Input Voltages

220 V, 240 V

Input Power Factor at Full Load

0.95

Batteries & Runtime

Battery type

Lead-acid battery

Included Battery Modules

4

Typical recharge time

2.5hour(s)

Nominal Battery Voltage

+/- 192 V (split battery referenced to neutral)

Replacement Battery

APCRBC140

Expected Battery Life (years)

3 – 5

RBC Quantity

4

Battery Charge Power (Watts)

1.53kWatts

Extendable Run Time

1

Efficiency in Battery Operation

93.0 %

Communications & Management

Interface Port(s)

DB-9 RS-232, RJ-45 10/100 Base-T, Smart-Slot

Pre-Installed SmartSlot™ Cards

AP9631

Control panel

Multifunction LCD status and control console

Audible Alarm

Audible and visible alarms : configurable delays

Emergency Power Off (EPO)

Yes

Surge Protection and Filtering

Filtering

Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

Maximum Height

533MM, 53.3CM

Maximum Width

432MM, 43.2CM

Maximum Depth

773MM, 77.3CM

Net Weight

247.73KG

Shipping weight

314.09KG

Shipping Height

990MM, 99.0CM

Shipping Width

610MM, 61.0CM

Shipping Depth

1003MM, 100.3CM

Color

Black

Units per Pallet

1.0

Environmental

Operating Temperature

0 – 40 °C

Operating Relative Humidity

0 – 95 (Non-condensing) %

Operating Elevation

0 – 3048meters

Storage Temperature

-15 – 45 °C

Storage Relative Humidity

0 – 95 (Non-condensing) %

Storage Elevation

0 – 15240meters

Audible noise at 1 meter from surface of unit

50.0dBA

Online thermal dissipation

2800.0BTU/hr

Protection Class

IP20

Conformance

Approvals

EN/IEC 62040-1-1, EN/IEC 62040-2, VDE

Standard warranty

2 years repair or replace

Sustainable Offer Status

RoHS

Compliant

PEP

Available in Documentation tab

EOLI

Available in Documentation tab
