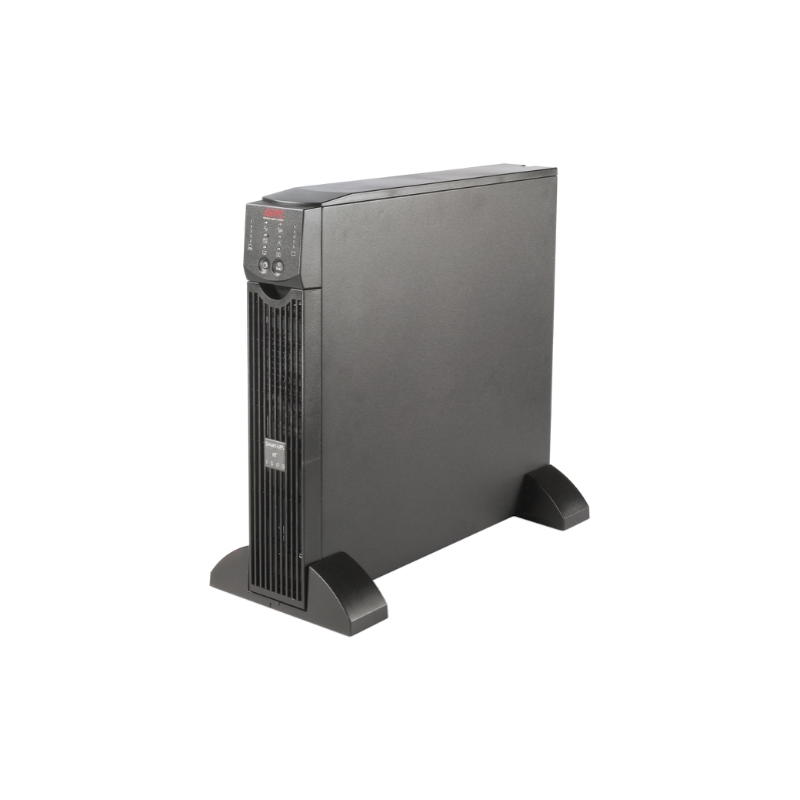

APC Smart-UPS RT 1500VA, 120V, 6x NEMA 5-15R outlets

APC Smart-UPS RT 1500VA, 120V, 6x NEMA 5-15R outlets

2.093,75 €

Κωδικός προϊόντος: SURTA1500XL Κατηγορία:

Περιγραφή

APC Smart-UPS RT 1500VA, 120V, 6x NEMA 5-15R outlets
High density, double-conversion on-line power protection with scalable runtime.
Includes: CD with software, Documentation CD, Installation guide, Smart UPS signalling RS-232 cable, USB cable, User manual
Technical Specifications:

Output

Max Configurable Power (Watts)

1.05kWatts / 1.5kVA

Output Voltage Distortion

Less than 3 %

Output Frequency (sync to mains)

50/60 Hz +/- 3 Hz user adjustable +/- 0.1 Hz Sync to mains

Load Crest Factor

3 : 1

Topology

Double conversion online

Waveform type

Sine wave

Bypass

Built-in bypass

Input

Input frequency

50/60 Hz +/- 5 Hz Auto-sensing

Input voltage range for main operations

90 – 150V

Number of Power Cords

1

Batteries & Runtime

Battery type

Lead-acid battery

Included Battery Modules

1

Typical recharge time

3hour(s)

Replacement Battery

RBC57

Expected Battery Life (years)

3 – 5

RBC Quantity

1

Battery Charge Power (Watts)

144 Watts

Extendable Run Time

1

Communications & Management

Interface Port(s)

DB-9 RS-232, Smart-Slot, USB

Control panel

LED status display with load and battery bar-graphs and on line : on battery : replace battery : overload and bypass indicators

Audible Alarm

Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Emergency Power Off (EPO)

Yes

Available SmartSlot™ Interface Quantity

1

Surge Protection and Filtering

Surge energy rating

540Joules

Filtering

Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

Maximum Height

432MM, 43.2CM

Maximum Width

85MM, 8.5CM

Maximum Depth

559MM, 55.9CM

Net Weight

27.5KG

Shipping weight

31.36KG

Shipping Height

260MM, 26.0CM

Shipping Width

610MM, 61.0CM

Shipping Depth

737MM, 73.7CM

Color

Black

Units per Pallet

8.0

Environmental

Operating Temperature

0 – 40 °C

Operating Relative Humidity

0 – 95 (Non-condensing) %

Operating Elevation

0 – 3048meters

Storage Temperature

-20 – 50 °C

Storage Relative Humidity

0 – 95 (Non-condensing) %

Storage Elevation

0 – 15240meters

Audible noise at 1 meter from surface of unit

45.0dBA

Online thermal dissipation

537.0BTU/hr

Protection Class

IP20

Conformance

Approvals

BSMI, CSA, FCC part 15 class B, UL 1778

Standard warranty

2 years repair or replace

Sustainable Offer Status

RoHS

Compliant
