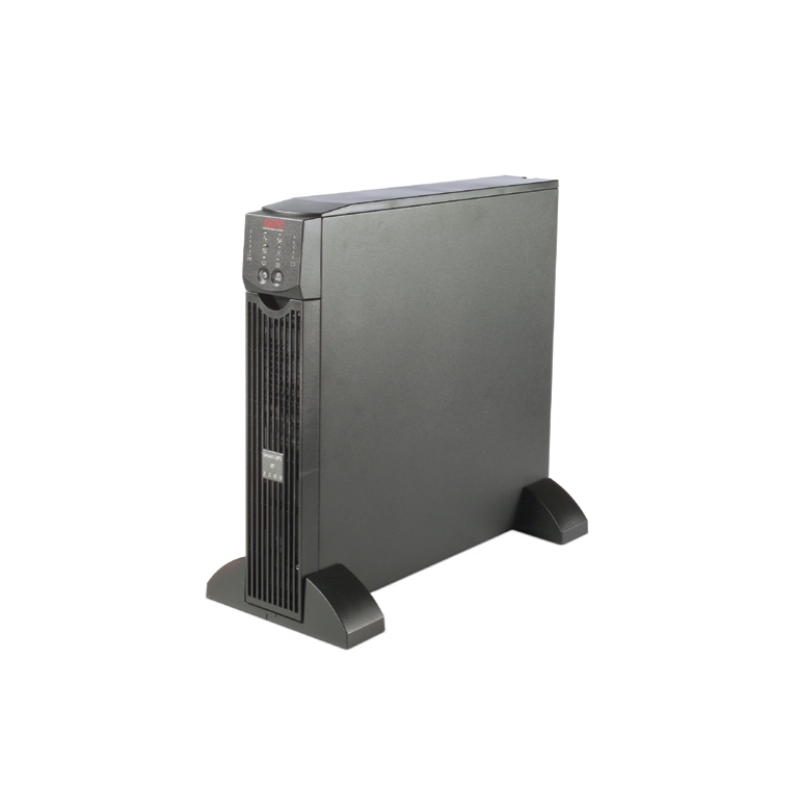

APC Smart-UPS RT 1200VA, 100V, 6x NEMA 5-15R outlets

APC Smart-UPS RT 1200VA, 100V, 6x NEMA 5-15R outlets

2.218,75 €

Κωδικός προϊόντος: SURTA1500XLJ Κατηγορία:

Περιγραφή

APC Smart-UPS RT 1200VA, 100V, 6x NEMA 5-15R outlets
High density, double-conversion on-line power protection with scalable runtime.
Includes: Documentation CD, Smart UPS signalling RS-232 cable, User guide in japanese
Technical Specifications:

Output

Max Configurable Power (Watts)

1.05kWatts / 1.5kVA

Efficiency at Full Load

87.0 %

Output Voltage Distortion

Less than 3 %

Output Frequency (sync to mains)

50/60 Hz +/- 3 Hz user adjustable +/- 0.1 Hz Sync to mains

Load Crest Factor

3 : 1

Topology

Double conversion online

Waveform type

Sine wave

Bypass

Built-in bypass

Input

Input frequency

50/60 Hz +/- 5 Hz Auto-sensing

Number of Power Cords

1

Efficiency at Full Load

87.0 %

Batteries & Runtime

Battery type

Lead-acid battery

Typical recharge time

3hour(s)

Expected Battery Life (years)

3 – 5

RBC Quantity

1

Battery Charge Power (Watts)

118 Watts

Extendable Run Time

1

Runtime

View Runtime Graph

Communications & Management

Interface Port(s)

DB-9 RS-232, Smart-Slot, USB

Emergency Power Off (EPO)

Yes

Available SmartSlot™ Interface Quantity

1

Physical

Maximum Height

432MM, 43.2CM

Maximum Width

86MM, 8.6CM

Maximum Depth

565MM, 56.5CM

Net Weight

27.5KG

Shipping weight

33.0KG

Shipping Height

260MM, 26.0CM

Shipping Width

610MM, 61.0CM

Shipping Depth

737MM, 73.7CM

Color

Black

Units per Pallet

8.0

Environmental

Operating Temperature

0 – 40 °C

Operating Relative Humidity

0 – 95 (Non-condensing) %

Operating Elevation

0 – 3048meters

Storage Temperature

-20 – 50 °C

Storage Relative Humidity

0 – 95 (Non-condensing) %

Storage Elevation

0 – 15240meters

Audible noise at 1 meter from surface of unit

45.0dBA

Online thermal dissipation

393.0BTU/hr

Protection Class

IP20

Conformance

Approvals

UL 1778, VCCI

Standard warranty

2 years repair or replace

Sustainable Offer Status

RoHS

Compliant

PEP

Available in Documentation tab

EOLI

Available in Documentation tab
