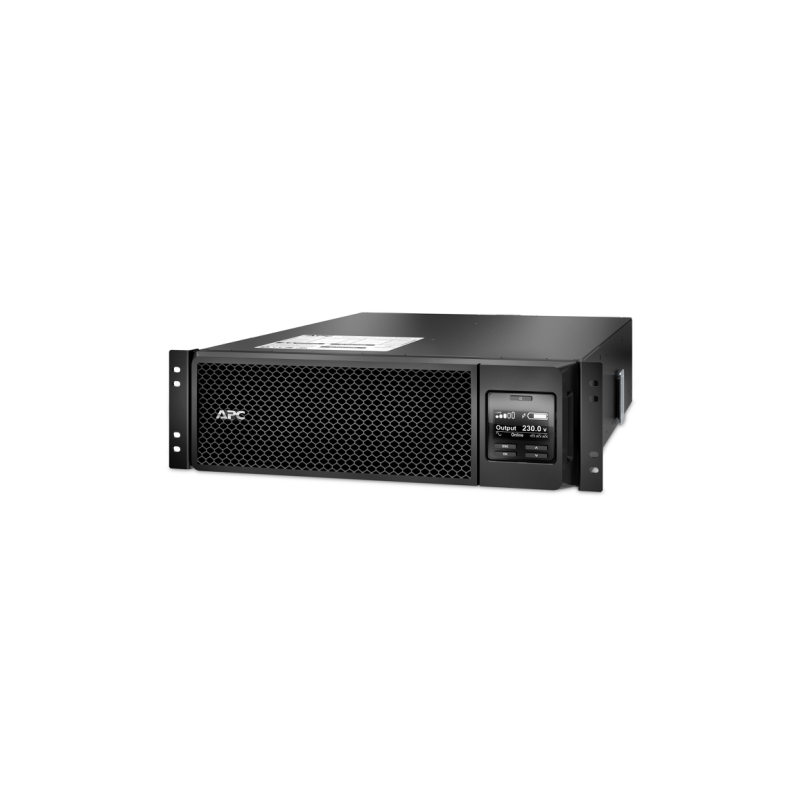

APC Smart-UPS On-Line, 5kVA, Rackmount 3U, 208V/230V

APC Smart-UPS On-Line, 5kVA, Rackmount 3U, 208V/230V

6.062,50 €

Κωδικός προϊόντος: SRT5KRMXLW-HW Κατηγορία:

Περιγραφή

APC Smart-UPS On-Line, 5kVA, Rackmount 3U, 208V/230V, Hard wire 3-wire(2PH+G)+3-wire(H+N+E)+3-wire(H+N+G) outlets, Network Card+SmartSlot, W/rail kit
High density, double-conversion on-line power protection with scalable runtime.
Includes: CD with software, Documentation CD, Installation guide, Rack mounting hardware, Rack mounting support rails, Removable support feet, Temperature probe, User manual, Warranty card, Web/SNMP management card

Technical Specifications:

Output

Max Configurable Power (Watts)

4.5kWatts / 5.0kVA

Output Voltage Distortion

Less than 2 %

Output Frequency (sync to mains)

50/60 Hz +/- 3 Hz Sync to mains

Other Output Voltages

220 V, 240 V

Load Crest Factor

3 : 1

Topology

Double conversion online

Waveform type

Sine wave

Bypass

Internal bypass (automatic and manual)

Input

Input frequency

40 – 70 Hz Auto-sensing

Input voltage range for main operations

100 – 275 Adjustable (half load)V

Other Input Voltages

220 V, 240 V

Batteries & Runtime

Battery type

Lead-acid battery

Typical recharge time

1.5hour(s)

Nominal Battery Voltage

192 V

Replacement Battery

APCRBC140

Expected Battery Life (years)

3 – 5

RBC Quantity

1

Battery Charge Power (Watts)

560 Watts

Extendable Run Time

1

Communications & Management

Interface Port(s)

RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB

Control panel

Multifunction LCD status and control console

Audible Alarm

Audible and visible alarms prioritized by severity

Emergency Power Off (EPO)

Yes

Available SmartSlot™ Interface Quantity

1

Surge Protection and Filtering

Surge energy rating

480Joules

Physical

Maximum Height

130MM, 13.0CM

Maximum Width

432MM, 43.2CM

Maximum Depth

719MM, 71.9CM

Net Weight

55.79KG

Shipping weight

68.04KG

Shipping Height

330MM, 33.0CM

Shipping Width

610MM, 61.0CM

Shipping Depth

960MM, 96.0CM

Color

Black

Units per Pallet

6.0

Environmental

Operating Temperature

0 – 40 °C

Operating Relative Humidity

0 – 95 (Non-condensing) %

Operating Elevation

0 – 3048meters

Storage Temperature

-15 – 45 °C

Storage Relative Humidity

0 – 95 (Non-condensing) %

Storage Elevation

0 – 15240meters

Audible noise at 1 meter from surface of unit

55.0dBA

Online thermal dissipation

931.0BTU/hr

Protection Class

IP20

Conformance

Approvals

CE, CE Mark, CSA C22.2 No 107.3-05, EAC, EN/IEC 62040-1, EN/IEC 62040-2, ENERGY STAR V2.0 (USA), FCC part 15 class A, IRAM, NOM, RCM, UL 1778, VDE

Standard warranty

3 years repair or replace (excluding battery) and 2 years for battery

Sustainable Offer Status

RoHS

Compliant

Proposition 65 Warning

Available in Documentation tab
