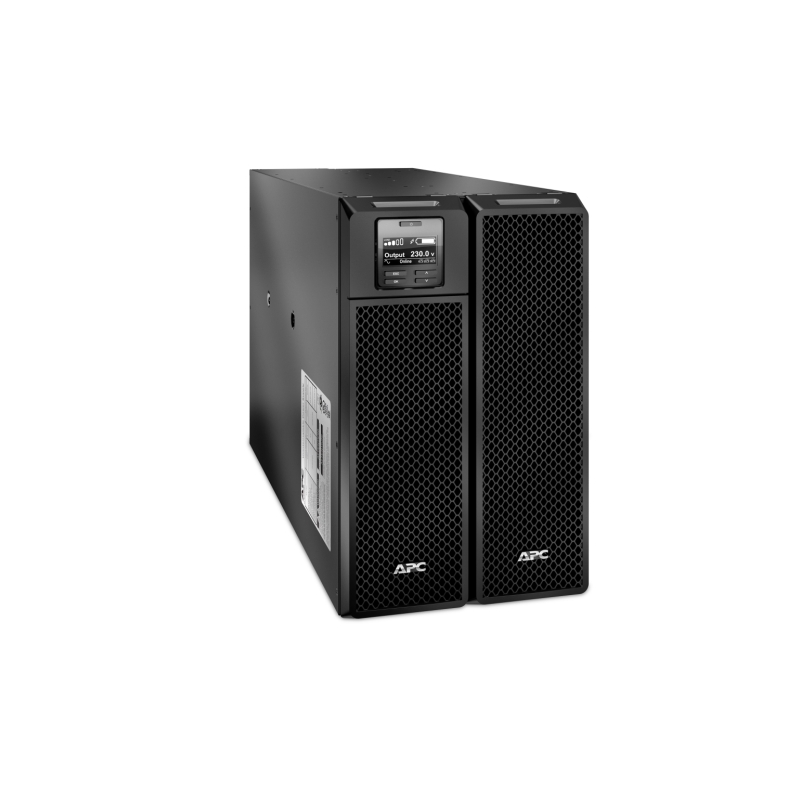

APC Smart-UPS On-Line, 10kVA/10kW, Tower, 230V/400V, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime

APC Smart-UPS On-Line, 10kVA/10kW, Tower, 230V/400V, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime

10.474,99 €

Κωδικός προϊόντος: SRT10KXLI Κατηγορία:

Περιγραφή

APC Smart-UPS On-Line, 10kVA/10kW, Tower, 230V/400V, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime, Rail kit excluded
High density, double-conversion on-line power protection with scalable runtime.
Includes: CD with software, Documentation CD, Installation guide, Temperature probe, USB cable, Warranty card, Web/SNMP management card
Technical Specifications:

Output

Max Configurable Power (Watts)

10.0kWatts / 10.0kVA

Output Voltage Distortion

Less than 2 %

Output Frequency (sync to mains)

50/60 Hz +/- 3 Hz Sync to mains

Other Output Voltages

220 V, 240 V

Load Crest Factor

3 : 1

Topology

Double conversion online

Waveform type

Sine wave

Bypass

Internal bypass (automatic and manual)

Input

Input frequency

40 – 70 Hz Auto-sensing

Input voltage range for main operations

100 – 275 Adjustable (half load), 173 – 476 Adjustable (half load)V

Other Input Voltages

220 V, 240 V, 380 V, 415 V

Batteries & Runtime

Battery type

Lead-acid battery

Typical recharge time

1.5hour(s)

Nominal Battery Voltage

+/- 192 V (split battery referenced to neutral)

Replacement Battery

APCRBC140

Expected Battery Life (years)

3 – 5

RBC Quantity

2

Battery Charge Power (Watts)

1.195kWatts

Extendable Run Time

1

Communications & Management

Interface Port(s)

RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB

Control panel

Multifunction LCD status and control console

Audible Alarm

Audible and visible alarms prioritized by severity

Emergency Power Off (EPO)

Yes

Available SmartSlot™ Interface Quantity

1

Surge Protection and Filtering

Surge energy rating

480Joules

Physical

Maximum Height

432MM, 43.2CM

Maximum Width

263MM, 26.3CM

Maximum Depth

715MM, 71.5CM

Net Weight

111.82KG

Shipping weight

126.82KG

Shipping Height

461MM, 46.1CM

Shipping Width

600MM, 60.0CM

Shipping Depth

1000MM, 100.0CM

Color

Black

Environmental

Operating Temperature

0 – 40 °C

Operating Relative Humidity

0 – 95 %

Operating Elevation

0 – 3048meters

Storage Temperature

-15 – 45 °C

Storage Relative Humidity

0 – 95 (Non-condensing) %

Storage Elevation

0 – 15240meters

Audible noise at 1 meter from surface of unit

55.0dBA

Online thermal dissipation

1947.0BTU/hr

Protection Class

IP20

Conformance

Approvals

CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE

Standard warranty

3 years repair or replace (excluding battery) and 2 years for battery

Sustainable Offer Status

RoHS

Compliant

Proposition 65 Warning

Available in Documentation tab
