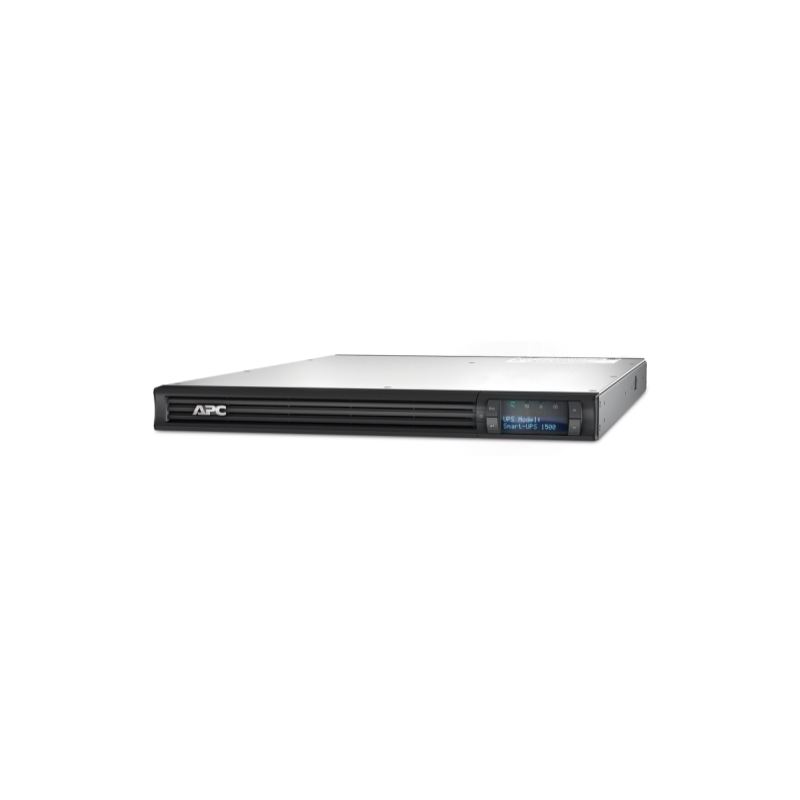

APC Smart-UPS, Line Interactive, 1500VA, Rackmount 1U, 230V, 4x IEC C13 outlets, SmartSlot, AVR, LCD
Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Includes: CD with software, Documentation CD, Installation guide, Rack mounting support rails, Smart UPS signalling RS-232 cable, USB cable, Warranty card
Technical Specifications:
Output
Max Configurable Power (Watts)
1.0kWatts / 1.5kVA
Output Voltage Distortion
Less than 5 %
Other Output Voltages
220 V, 240 V
Topology
Line interactive
Waveform type
Sine wave
Input
Input frequency
50/60 Hz
Input voltage range for main operations
174 – 286V
Batteries & Runtime
Battery type
Lead-acid battery
Typical recharge time
4hour(s)
Replacement Battery
APCRBC88
Expected Battery Life (years)
3 – 5
RBC Quantity
1
Battery Charge Power (Watts)
73 Watts
Communications & Management
Interface Port(s)
RJ-45 Serial, SmartSlot, USB
Control panel
Multifunction LCD status and control console
Audible Alarm
Alarm when on battery : distinctive low battery alarm : configurable delays
Available SmartSlot™ Interface Quantity
1
Surge Protection and Filtering
Surge energy rating
540Joules
Filtering
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
Maximum Height
44MM, 4.4CM
Maximum Width
432MM, 43.2CM
Maximum Depth
665MM, 66.5CM
Net Weight
24.09KG
Shipping weight
29.09KG
Shipping Height
200MM, 20.0CM
Shipping Width
575MM, 57.5CM
Shipping Depth
794MM, 79.4CM
Color
Black
Units per Pallet
10.0
Environmental
Operating Temperature
0 – 40 °C
Operating Relative Humidity
0 – 95 %
Operating Elevation
0 – 3048meters
Storage Temperature
-15 – 45 °C
Storage Relative Humidity
0 – 95 %
Storage Elevation
0 – 15240meters
Audible noise at 1 meter from surface of unit
46.0dBA
Online thermal dissipation
116.0BTU/hr
Conformance
Approvals
CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE
Standard warranty
3 years repair or replace (excluding battery) and 2 years for battery
Sustainable Offer Status
RoHS
Compliant
EOLI
Available in Documentation tab
