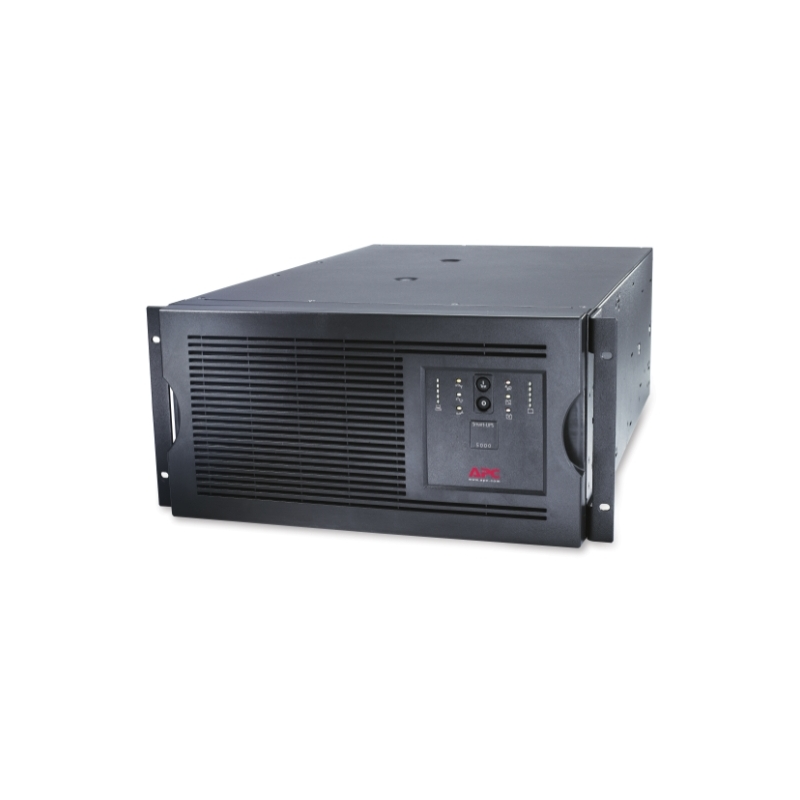

APC Smart-UPS 5000VA 230V Rackmount/Tower

APC Smart-UPS 5000VA 230V Rackmount/Tower

5.385,35 €

Κωδικός προϊόντος: SUA5000RMI5U Κατηγορία:

Περιγραφή

APC Smart-UPS 5000VA 230V Rackmount/Tower
Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Includes: CD with software, Documentation CD, Installation guide, Rack mounting hardware, Rack mounting support rails, Smart UPS signalling RS-232 cable, User manual, Web/SNMP management card
Technical Specifications:

Output

Max Configurable Power (Watts)

4.0kWatts / 5.0kVA

Output Voltage Note

Configurable for 220 : 230 or 240 nominal output voltage

Efficiency at Full Load

96.0 %

Output Voltage Distortion

Less than 5 % at full load

Output Frequency (sync to mains)

47 – 53 Hz For 50 Hz nominal Sync to mains

Other Output Voltages

220 V, 240 V

Load Crest Factor

3 : 1

Topology

Line interactive

Waveform type

Sine wave

Transfer Time

2 ms typical : 4 ms maximum

Input

Input frequency

50/60 Hz +/- 3 Hz Auto-sensing

Input voltage range for main operations

151 – 302 Adjustable, 160 – 286V

Efficiency at Full Load

96.0 %

Batteries & Runtime

Battery type

VRLA

Typical recharge time

3hour(s)

Replacement Battery

RBC55

Expected Battery Life (years)

3 – 5

RBC Quantity

2

Battery Charge Power (Watts)

542 Watts

Communications & Management

Interface Port(s)

DB-9 RS-232, SmartSlot

Control panel

LED status display with on line : on battery : replace battery and overload indicators

Audible Alarm

Audible and visible alarms : configurable delays

Surge Protection and Filtering

Surge energy rating

480Joules

Filtering

Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

Maximum Height

222MM, 22.2CM

Maximum Width

483MM, 48.3CM

Maximum Depth

660MM, 66.0CM

Net Weight

97.73KG

Shipping weight

106.82KG

Shipping Height

635MM, 63.5CM

Shipping Width

610MM, 61.0CM

Shipping Depth

762MM, 76.2CM

Color

Black

Master Carton Units

1.0

Units per Pallet

4.0

Environmental

Operating Temperature

0 – 40 °C

Operating Relative Humidity

0 – 95 %

Operating Elevation

0 – 3048meters

Storage Temperature

-15 – 45 °C

Storage Relative Humidity

0 – 95 %

Storage Elevation

0 – 15240meters

Audible noise at 1 meter from surface of unit

53.0dBA

Online thermal dissipation

430.0BTU/hr

Conformance

Approvals

C-Tick, CE, EN 50091-1, EN 50091-2, GOST, GS Mark, VDE

Standard warranty

2 years repair or replace

Sustainable Offer Status

RoHS

Compliant

PEP

Available in Documentation tab

EOLI

Available in Documentation tab
