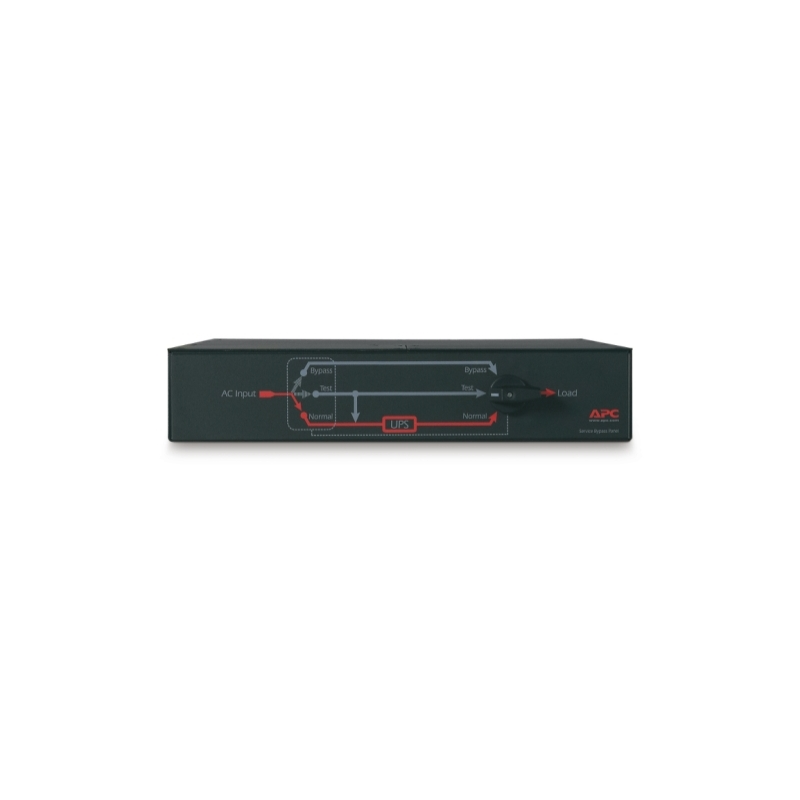

APC Service Bypass Panel – 200/208/240V; 30A; BBM; L6-30P input; (2) L6-30R (2) L6-20R output
Extremely reliable service bypass panels designed for APC InfraStruXure® Type A, Smart-UPS, and Symmetra UPS products.
Includes: Installation guide, Rack mounting brackets, User manual
Technical Specifications:
Output
Efficiency at Full Load
99 % %
Other Output Voltages
240 V
Overload Protection
Yes
Maximum Total Current Draw
24
Input
Input frequency
50/60 Hz
Number of Power Cords
1
Efficiency at Full Load
99 % %
Load Power Factor Range
0 to 1
Load Capacity
5000VA
Maximum Input Current
24A
Maximum Line Current
24A
Physical
Maximum Height
89MM, 8.9CM
Maximum Width
432MM, 43.2CM
Maximum Depth
660MM, 66.0CM
Net Weight
13.64KG
Shipping weight
24.54KG
Shipping Height
203MM, 20.3CM
Shipping Width
610MM, 61.0CM
Shipping Depth
991MM, 99.1CM
Color
Black
Units per Pallet
10.0
Environmental
Operating Temperature
-20 – 50 °C
Operating Relative Humidity
0 – 95 %
Operating Elevation
0 – 4572meters
Storage Temperature
-25 – 65 °C
Storage Relative Humidity
0 – 95 %
Storage Elevation
0 – 15240meters
Conformance
Approvals
CSA, EN 60950, GOST, IEC 60950, UL 1778
Standard warranty
2 years (parts only)
Sustainable Offer Status
RoHS
Compliant
