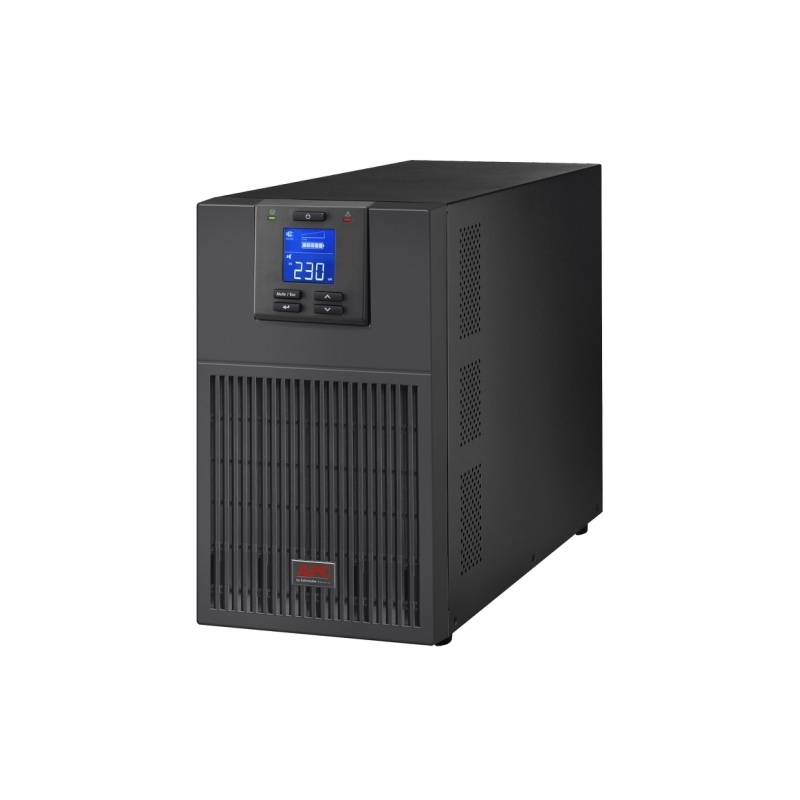

APC Easy UPS On-Line SRV 3000VA 230V

APC Easy UPS On-Line SRV 3000VA 230V

1.811,67 €

Κωδικός προϊόντος: SRV3KI Κατηγορία:

Περιγραφή

APC Easy UPS On-Line SRV 3000VA 230V
High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.
Includes: Basic UPS signalling RS-232 cable, CD with software, USB cable, User manual
Technical Specifications:

Output

Max Configurable Power (Watts)

2.4kWatts / 3.0kVA

Output Voltage Note

Configurable for 220 : 230 or 240 nominal output voltage

Efficiency at Full Load

88.0 %

Output Voltage Distortion

3 %

Output Frequency (sync to mains)

50/60 Hz +/- 3 Hz Sync to mains

Other Output Voltages

220 V, 240 V

Load Crest Factor

3 : 1

Topology

Double conversion online

Waveform type

Sine wave

Bypass

Internal bypass (automatic and manual)

Input

Input frequency

40 – 70 Hz Auto sensing

Input voltage range for main operations

110 – 285 Half load, 160 – 280 Full loadV

Number of Power Cords

1

Efficiency at Full Load

88.0 %

Other Input Voltages

220 V, 240 V

Batteries & Runtime

Battery type

Lead-acid battery

Typical recharge time

4hour(s)

Nominal Battery Voltage

72 V

Expected Battery Life (years)

3 – 5

Battery Charge Power (Watts)

60 Watts

Runtime

View Runtime Graph

Efficiency

View Efficiency Graph

Communications & Management

Interface Port(s)

DB-9 RS-232, USB

Control panel

Multifunction LCD status and control console

Audible Alarm

Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Available SmartSlot™ Interface Quantity

1

Surge Protection and Filtering

Surge energy rating

600Joules

Physical

Maximum Height

336MM, 33.6CM

Maximum Width

190MM, 19.0CM

Maximum Depth

425MM, 42.5CM

Net Weight

26.8KG

Shipping weight

29.0KG

Shipping Height

465MM, 46.5CM

Shipping Width

325MM, 32.5CM

Shipping Depth

565MM, 56.5CM

Color

Black

Environmental

Operating Temperature

0 – 40 °C

Operating Relative Humidity

0 – 95 (Non-condensing) %

Operating Elevation

0 – 3000meters

Storage Temperature

-20 – 50 °C

Storage Relative Humidity

0 – 95 (Non-condensing) %

Storage Elevation

0 – 15000meters

Audible noise at 1 meter from surface of unit

50.0dBA

Online thermal dissipation

910.0BTU/hr

Protection Class

IP20

Conformance

Approvals

CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2, TISI

Standard warranty

2 years repair or replace

Sustainable Offer Status

RoHS

Compliant
