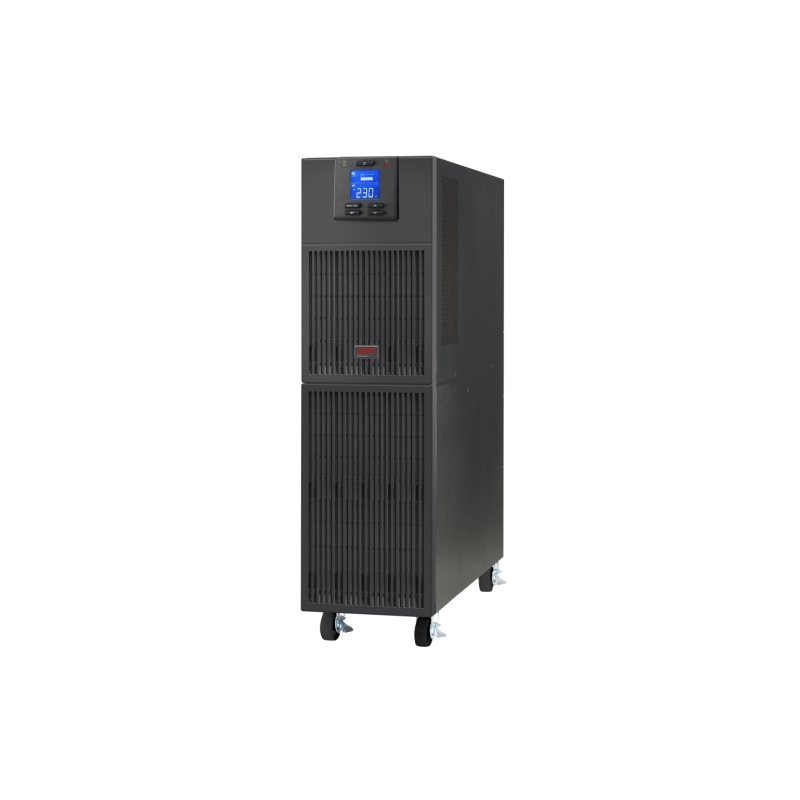

APC Easy UPS On-Line SRV 10000VA 230V

APC Easy UPS On-Line SRV 10000VA 230V

6.812,50 €

Κωδικός προϊόντος: SRV10KI Κατηγορία:

Περιγραφή

APC Easy UPS On-Line SRV 10000VA 230V
High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.
Includes: Basic UPS signalling RS-232 cable, CD with software, USB cable, User manual

Technical Specifications:

Output

Max Configurable Power (Watts)

10.0kWatts / 10.0kVA

Output Voltage Note

Configurable for 220 : 230 or 240 nominal output voltage

Efficiency at Full Load

94.0 %

Output Voltage Distortion

1 %

Output Frequency (sync to mains)

50/60 Hz +/- 3 Hz Sync to mains

Other Output Voltages

220 V, 240 V

Load Crest Factor

3 : 1

Topology

Double conversion online

Waveform type

Sine wave

Bypass

Internal bypass (automatic and manual)

Input

Input frequency

40 – 70 Hz Auto sensing

Input voltage range for main operations

110 – 300 Half load, 176 – 300 Full loadV

Efficiency at Full Load

94.0 %

Other Input Voltages

220 V, 240 V

Batteries & Runtime

Battery type

Lead-acid battery

Typical recharge time

9hour(s)

Nominal Battery Voltage

192 V

Expected Battery Life (years)

3 – 5

Battery Charge Power (Watts)

235 Watts

Communications & Management

Interface Port(s)

DB-9 RS-232, Intelligent Smart Slot, USB

Control panel

Multifunction LCD status and control console

Audible Alarm

Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Emergency Power Off (EPO)

Yes

Available SmartSlot™ Interface Quantity

1

Surge Protection and Filtering

Surge energy rating

600Joules

Physical

Maximum Height

685MM, 68.5CM

Maximum Width

190MM, 19.0CM

Maximum Depth

447MM, 44.7CM

Net Weight

65.0KG

Shipping weight

77.0KG

Shipping Height

910MM, 91.0CM

Shipping Width

320MM, 32.0CM

Shipping Depth

580MM, 58.0CM

Color

Black

Environmental

Operating Temperature

0 – 40 °C

Operating Relative Humidity

0 – 95 (Non-condensing) %

Operating Elevation

0 – 3000meters

Storage Temperature

-15 – 60 °C

Storage Relative Humidity

0 – 95 (Non-condensing) %

Storage Elevation

0 – 15000meters

Audible noise at 1 meter from surface of unit

58.0dBA

Online thermal dissipation

2128.0BTU/hr

Protection Class

IP20

Conformance

Approvals

CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2, TISI

Standard warranty

2 years repair or replace

Sustainable Offer Status

RoHS

Compliant
