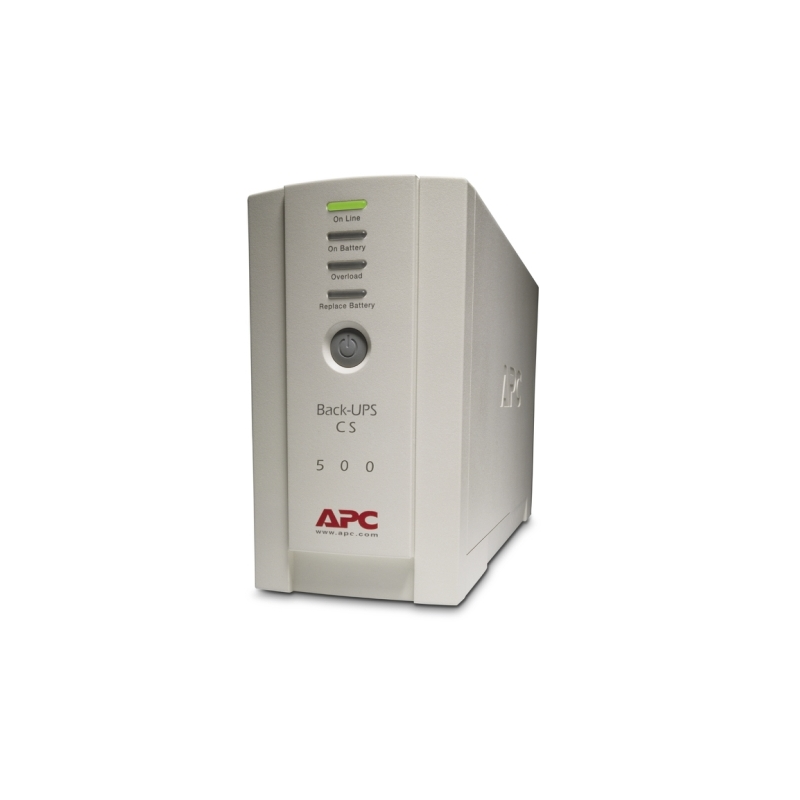

APC Back-UPS CS 500VA, 120V, beige, 6 NEMA outlets (3 surge)

APC Back-UPS CS 500VA, 120V, beige, 6 NEMA outlets (3 surge)

337,49 €

Κωδικός προϊόντος: BK500 Κατηγορία:

Περιγραφή

APC Back-UPS CS 500VA, 120V, beige, 6 NEMA outlets (3 surge)
Battery Backup & Surge Protector for Electronics and Computers
Includes: CD with software, Cord management straps, USB cable, User manual
Technical Specifications:

Output

Max Configurable Power (Watts)

300 Watts / 500VA

Output Frequency (sync to mains)

50/60 Hz +/- 3 Hz Sync to mains

Topology

Standby

Waveform type

Stepped approximation to a sinewave

Maximum Output Current

10

Transfer Time

8 ms typical : 12 ms maximum

Input

Input frequency

50/60 Hz +/- 3 Hz Auto-sensing

Input voltage range for main operations

98 – 140V

Number of Power Cords

1

Batteries & Runtime

Battery type

Lead-acid battery

Typical recharge time

8hour(s)

Nominal Battery Voltage

12 V

Replacement Battery

RBC2

Expected Battery Life (years)

4 – 6

RBC Quantity

1

Battery Charge Power (Watts)

10 Watts

Battery Volt-Amp-Hour Capacity

106

Communications & Management

Interface Port(s)

Optional Simple Signalling RS232 cable, USB

Control panel

LED status display with on line : on battery : replace battery and overload indicators

Audible Alarm

Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge Protection and Filtering

Surge energy rating

480Joules

Data Line Protection

RJ11 analog phone line for phone/fax/modem/DSL

Filtering

Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

Maximum Height

165MM, 16.5CM

Maximum Width

91MM, 9.1CM

Maximum Depth

284MM, 28.4CM

Net Weight

6.27KG

Shipping weight

6.95KG

Shipping Height

263MM, 26.3CM

Shipping Width

175MM, 17.5CM

Shipping Depth

357MM, 35.7CM

Color

Beige

Master Carton Dimensions (Length x Width x Height)

371MM

Master Carton Units

2.0

Master Carton Weight

14.29

Units per Pallet

36.0

SCC Codes

10731304016301

Environmental

Operating Temperature

0 – 40 °C

Operating Relative Humidity

0 – 95 %

Operating Elevation

0 – 3048meters

Storage Temperature

-15 – 45 °C

Storage Relative Humidity

0 – 95 %

Storage Elevation

0 – 15240meters

Audible noise at 1 meter from surface of unit

45.0dBA

Online thermal dissipation

24.0BTU/hr

Conformance

Approvals

California Energy Commission (CEC), cUL listed, ENERGY STAR V2.0 (USA), FCC part 15 class B, Industry Canada, UL 1778

Equipment protection policy

Lifetime : $100000

Standard warranty

3 years repair or replace

Sustainable Offer Status

RoHS

Compliant

PEP

Available in Documentation tab

EOLI

Available in Documentation tab

Proposition 65 Warning

Available in Documentation tab
